Live-action film

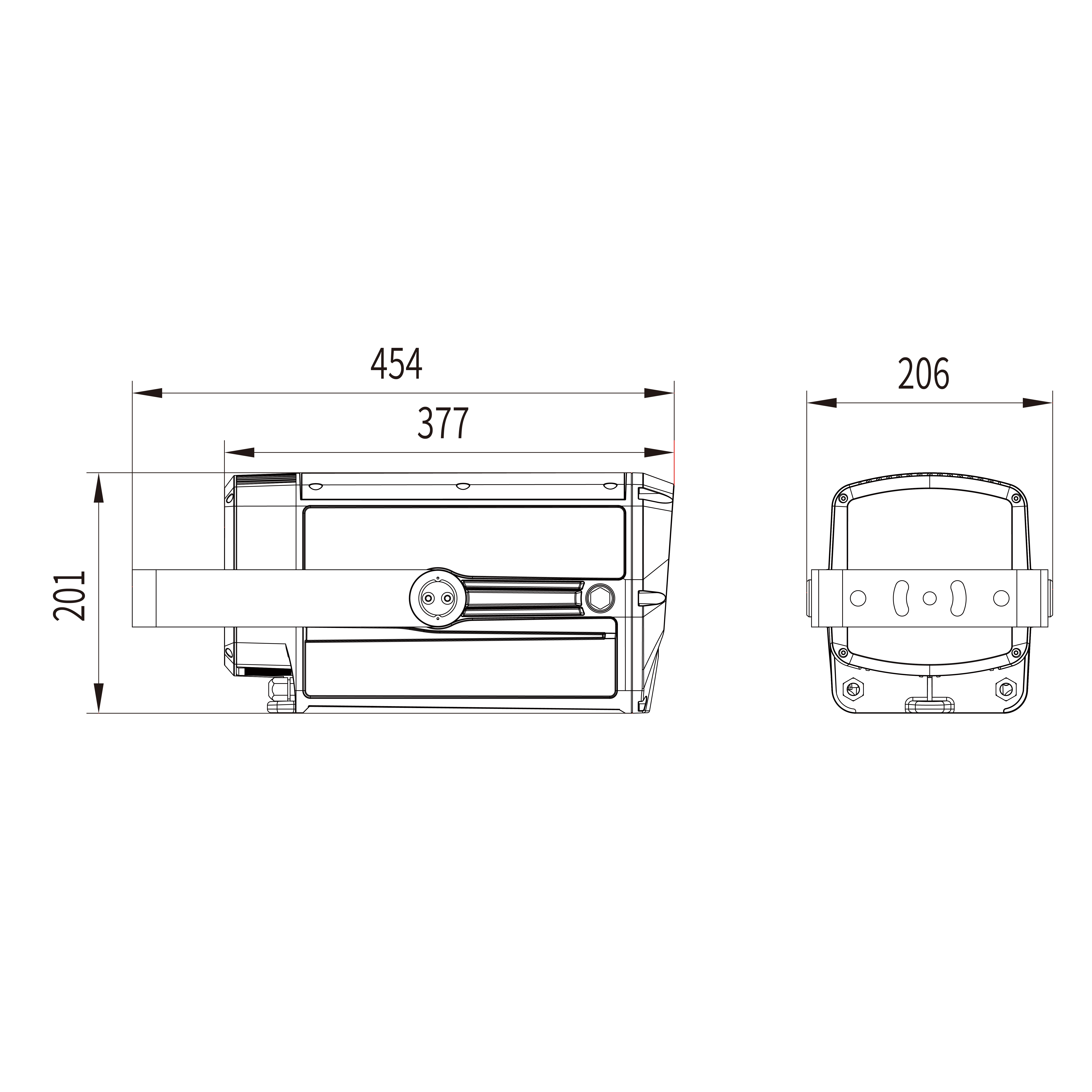

Dimension drawing

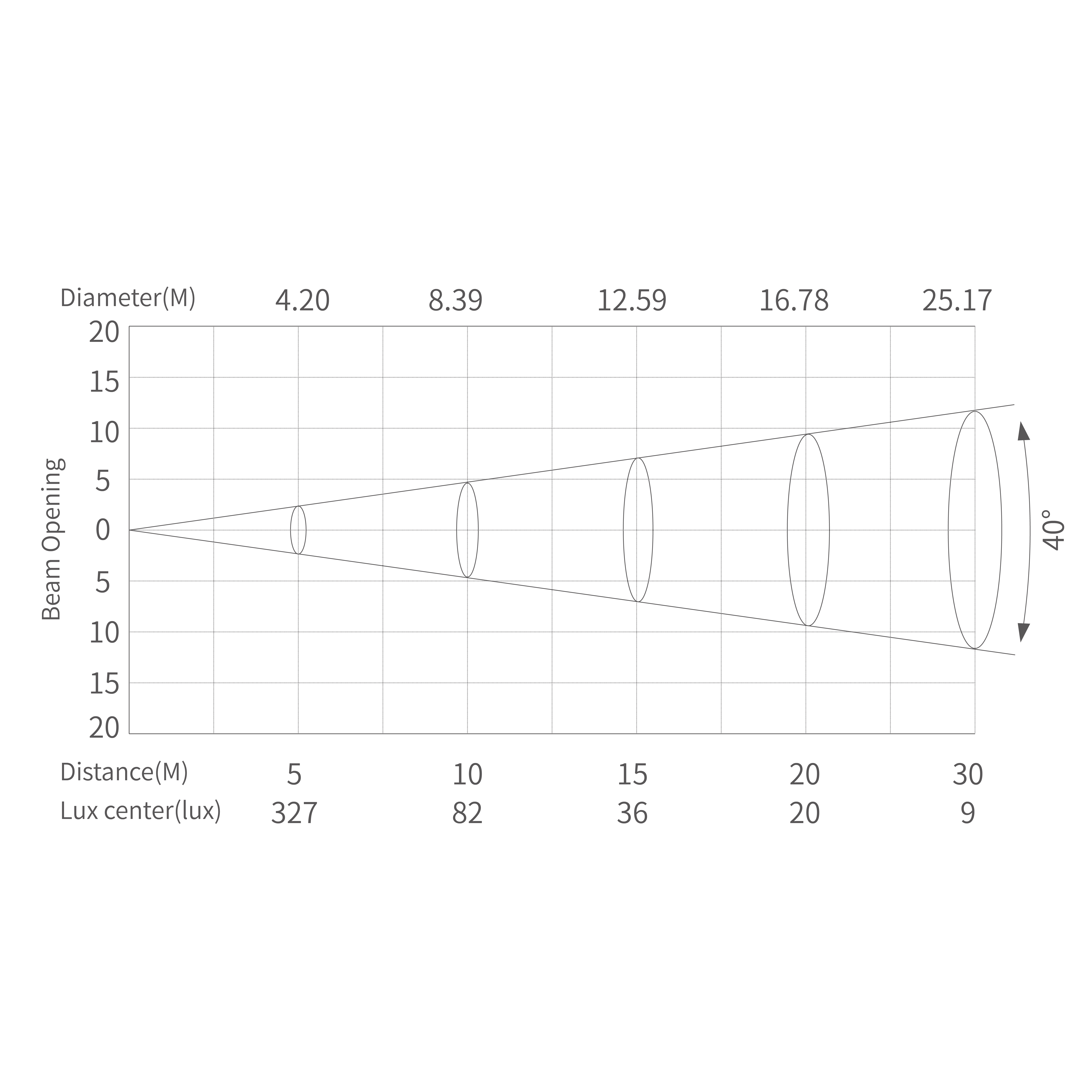

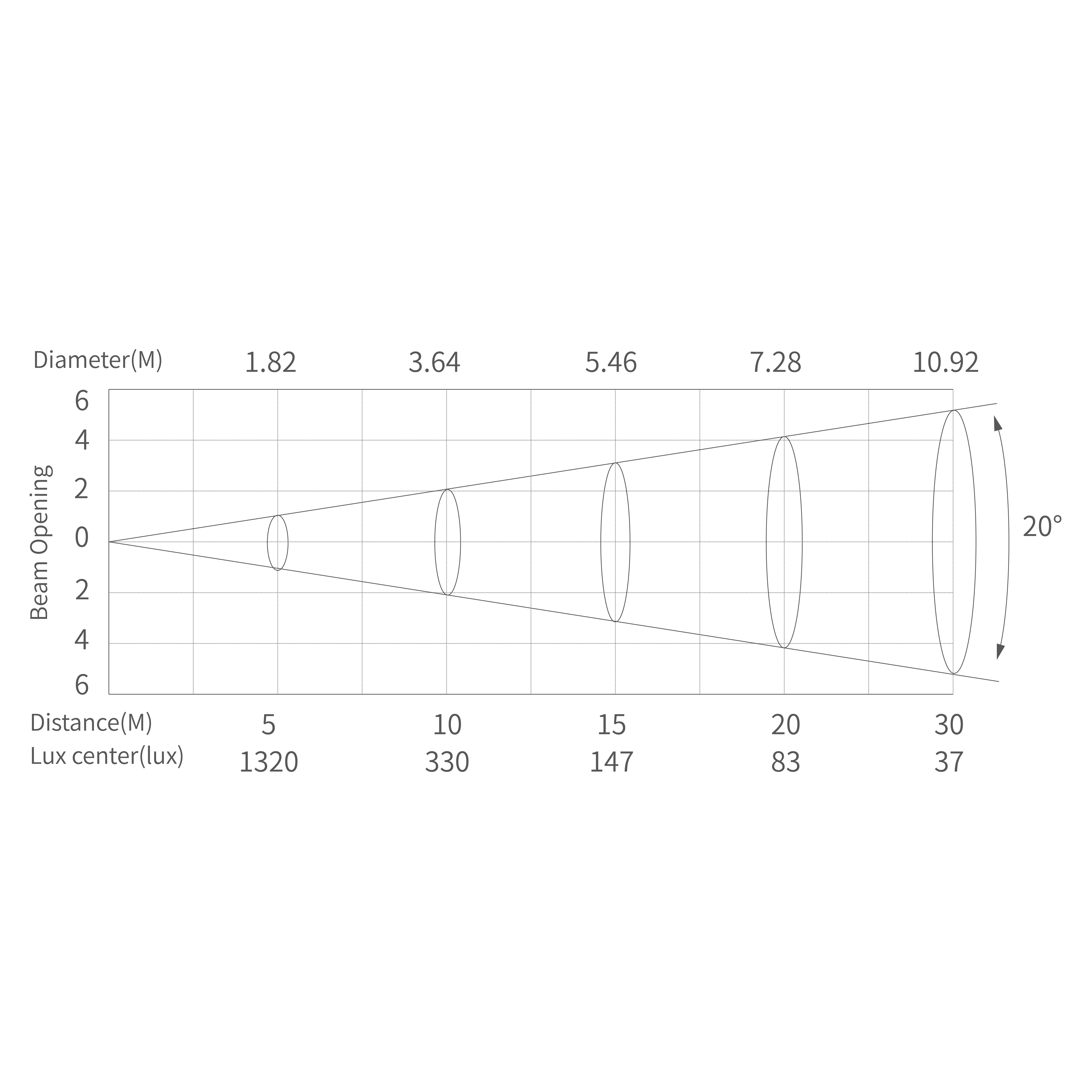

Illuminance diagram
Eidolon Gobo Projection
E2
Eidolon E2 is an outdoor 150W power IP66 waterproof gobo projector with one big power LED light source. The die-cast aluminum housing and air-cooling heat dissipation technology ensure the reliable stability of the fixture. It has electronic zoom of 20-40°. Equipped with 4 rotating gobos and 1 dynamic effect wheel, it can achieve rich and colorful effects. It has an OLED display with touch buttons and is applied in theme parks, amusement places, landmark, building complexes, outdoor performances and other places.
/upload/images/product/20251010/17600624757936654.png
Light source
100W
/upload/images/product/20251010/17600630272513718.png
Angle
20°-40°(electronic zoom)
/upload/images/product/20251010/17600630344098891.png
Weight
9.2kg
/upload/images/product/20251010/17600630513489059.png
Max.Power
150W
TECHNICAL PARAMETER
MAX.POWER

150W

LIGHT SOURCE

100W

ANGLE

20°-40°(electronic zoom)

DISPLAYOn board control, Static and Custom mode, 0-25Hz Strobe
CON PERSONALITYBASIC (CH.11),STANDARD(CH.14)
ROTATING GOBO4 gobo + white, bi-directional rotation
PRISM

one 4F prism with bi-directional rotation, speed adjustable

ANIMATION WHEEL

Bi-directional rotation, speed adjustable

FOCUSMotorized linear focus
DIMENSIONS (L*W*H)454x206x201mm


Download materials

Product brochure
  • E2 leaflet
    2025-10-10
    Down
Product lamp library
  • E2 Depence
    2025-10-10
    Down
  • E2 AVOLTES
    2025-10-10
    Down
  • E2 MA2
    2025-10-10
    Down
CAD
User manual
  • E2 specification
    2025-10-10
    Down
