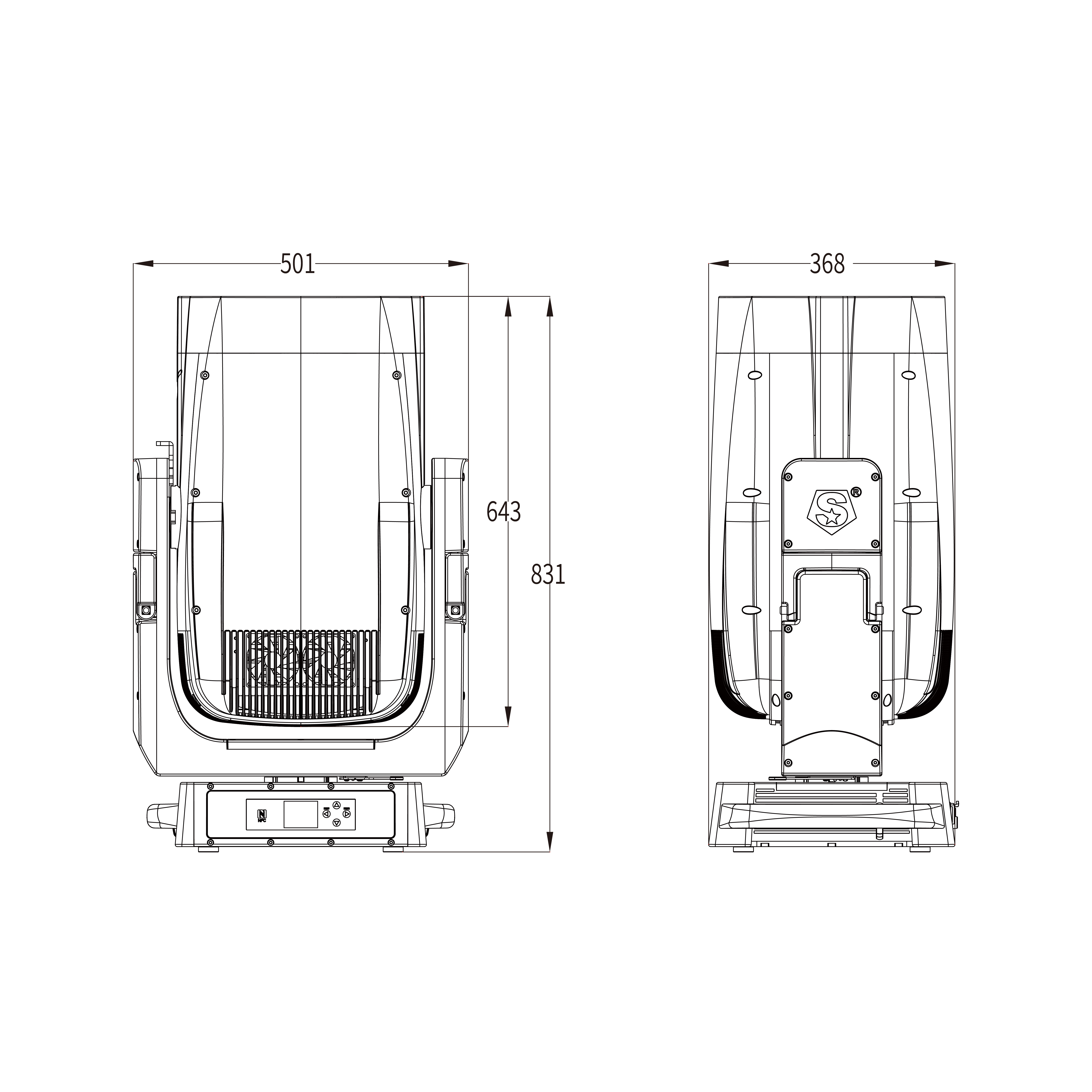

Dimension drawing

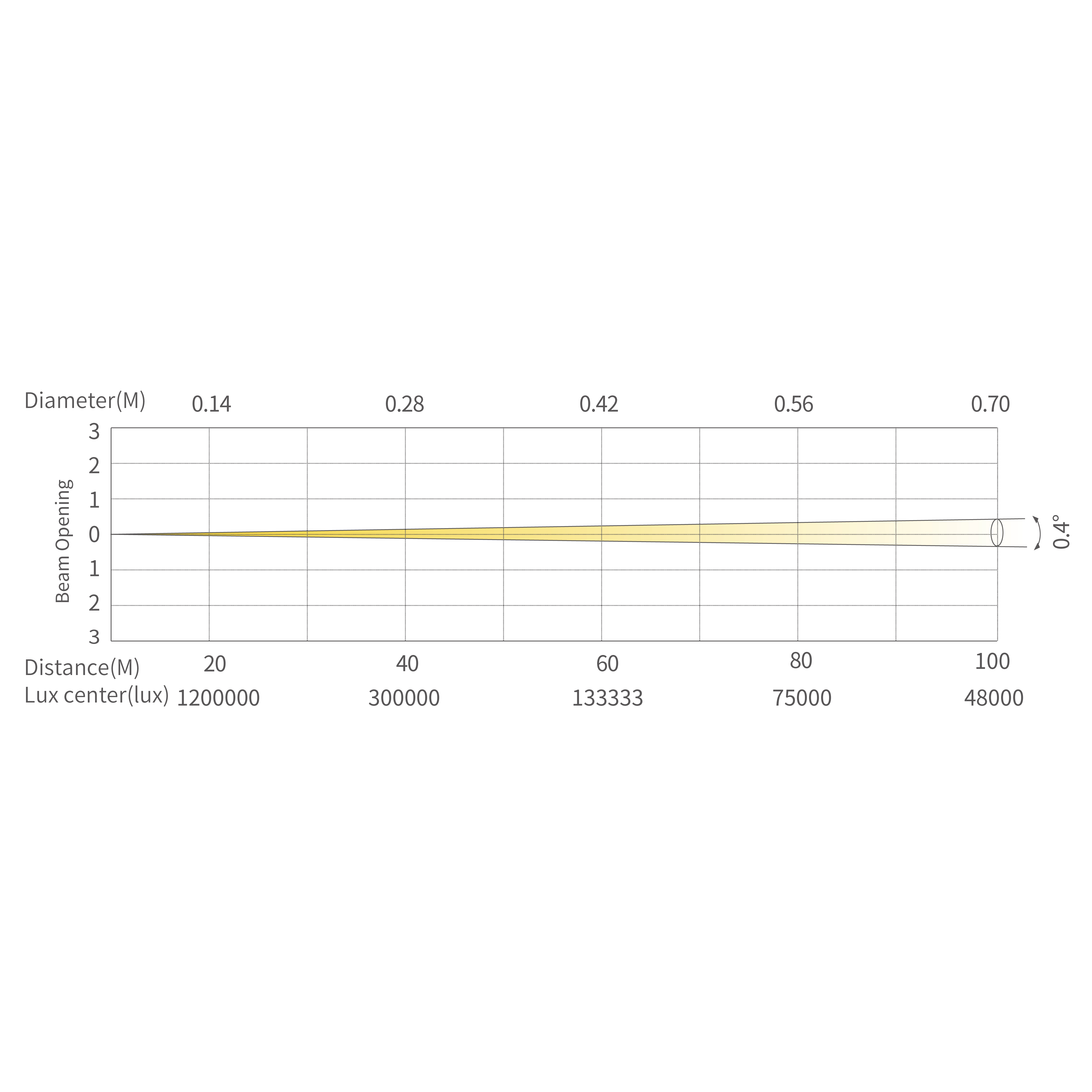

Illuminance diagram
Neptune Laser

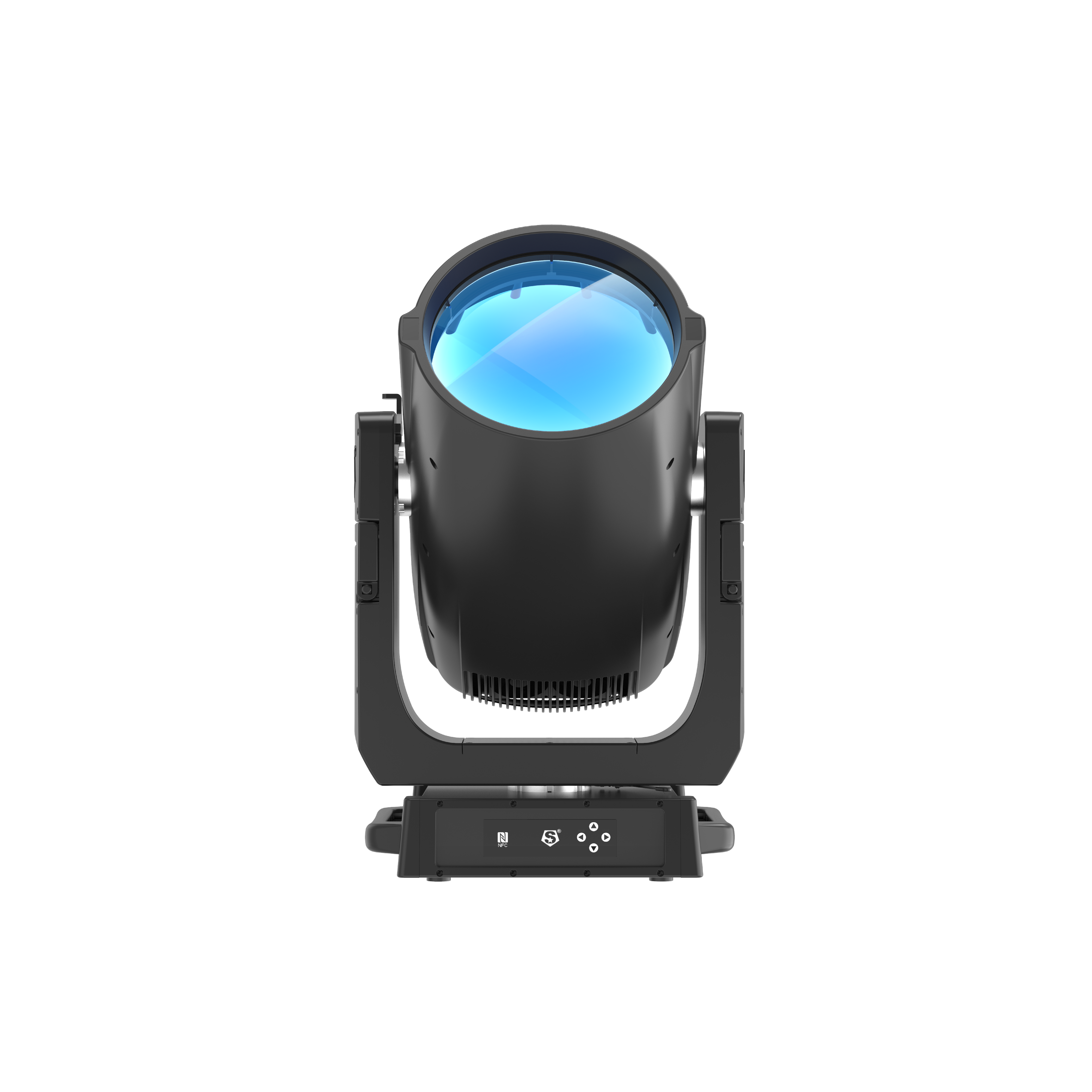

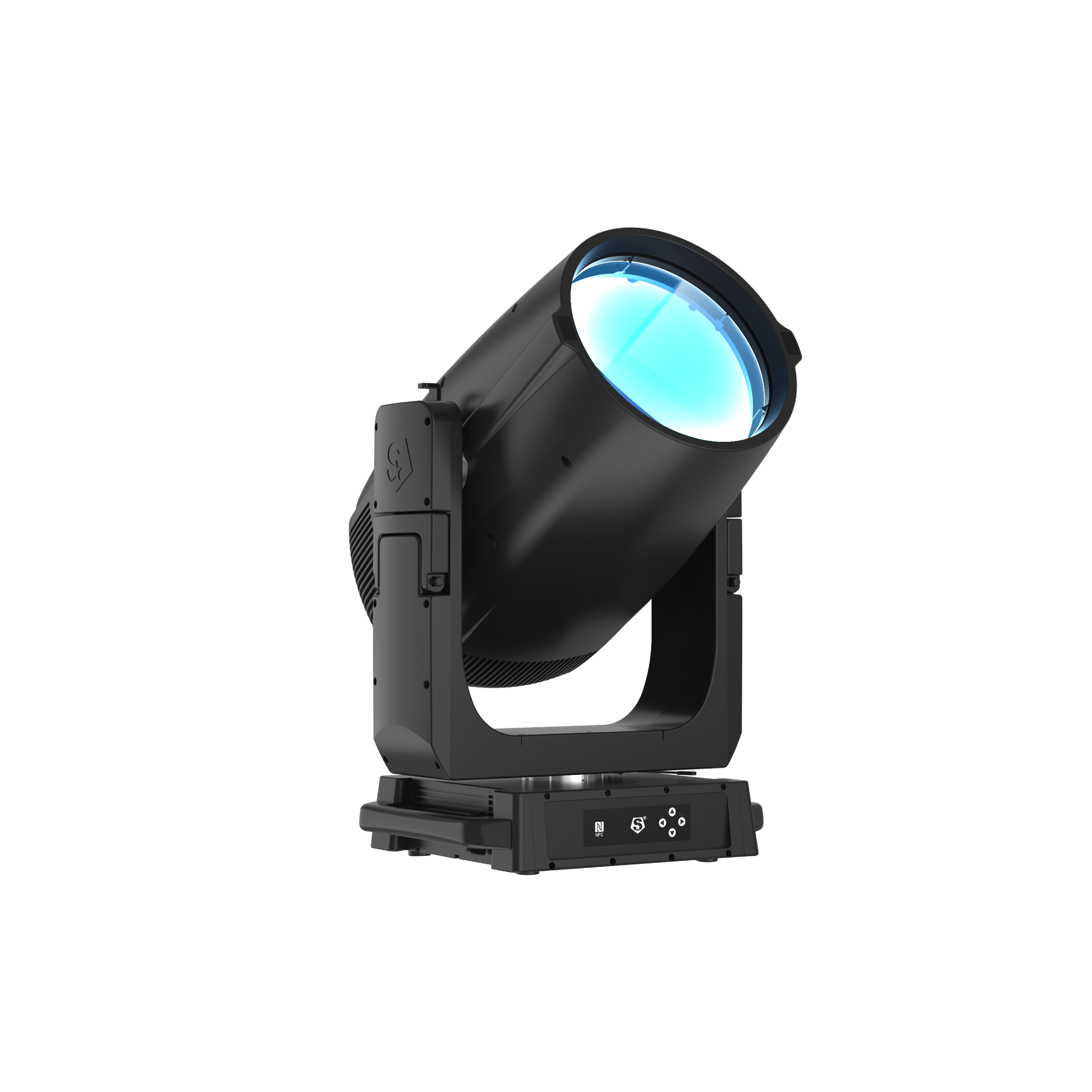

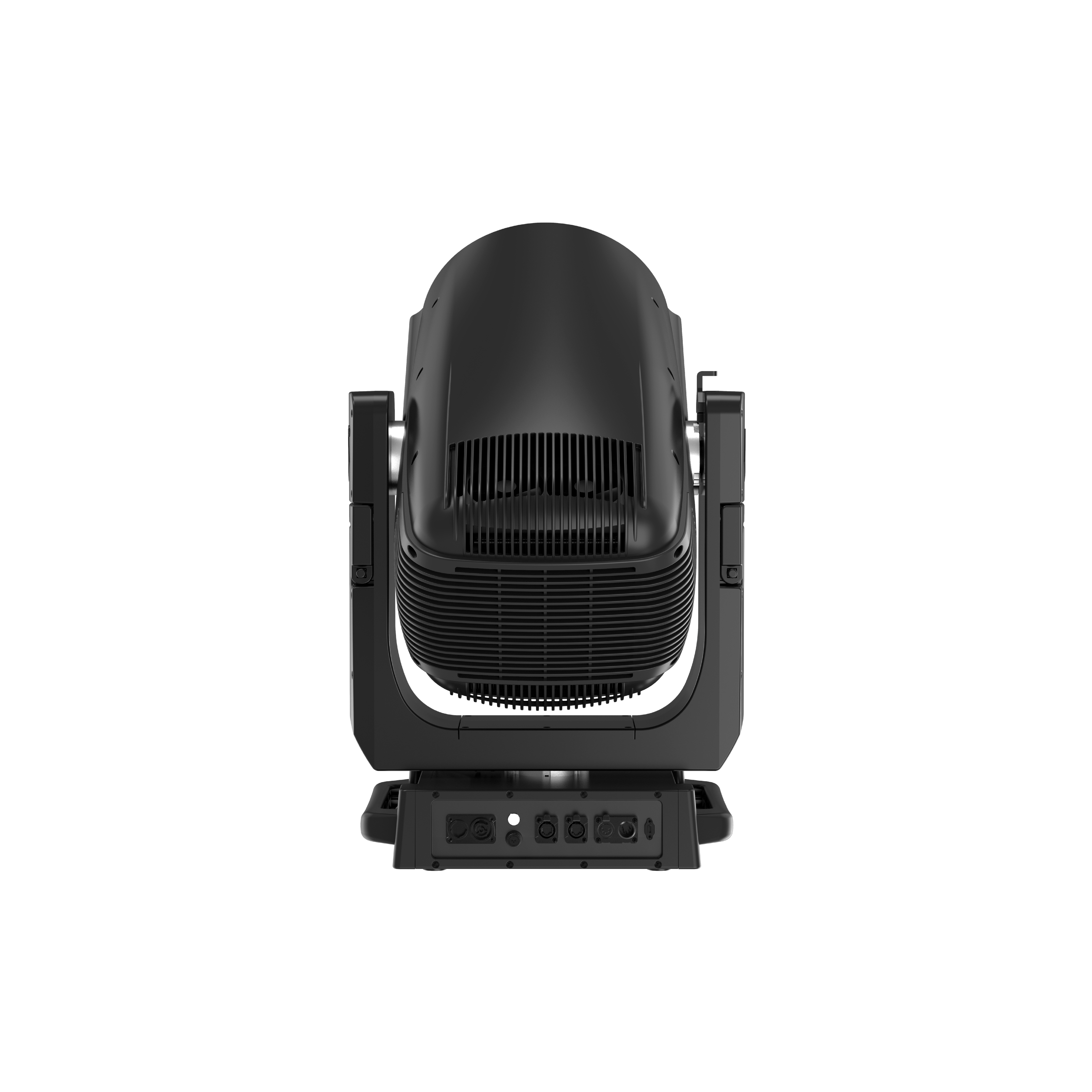

BX5-HT
Neptune BX5-HT is a 500W laser light source, IP66 moving head beam. It can reach 1200000lux@ 20meters with 0.4° super narrow angle. Beam is extremely strong and sharp thanks to its efficient optics.Suitable for urban landscape, cultural tourism lighting, concerts, theme parks and other places.
/upload/images/product/20251009/17599892507895729.png
Angle
0.4°-45°
/upload/images/product/20251009/17599892507840444.png
Weight
59.7KG
/upload/images/product/20251009/17599892503936340.png
Max.Power
700W
Optical system
Light source

500W LASER

Angle0.4°-45°(20m at 1200,000lux)


Appearance
Size

501×368×831mm

casting Magnalium and Die-cast
Weight

59.7kG

ColorBlack


Electrical Specs
Voltage

100-240VAC,50/60H

Power ConnectionSeetronic power input and output
Signal socket

3pin and 5pin in and out, RJ45 in and out

Max.Power700W


Control System
Pan/Tilt rotation

Infinite Pan/Tilt 270°

Dimmer0-100% 24Bit
Cooling

Forced Convection

ControlDMX512、RDM、ARTNET、SACN、 WDMX(optional)
DisplayOn Board Control, Custom Mode. 0-25Hz Strobe
Con PersonalityBASIC(23CH)/STANDARD(28CH)/Extend(34CH)


Effect synthetic system
Static Gobo

25 gobos+white

ColorsOne color wheel(19 color+white, rainbow-floweffect)
Rotating Gobo

12 Gobos+white,Gobo-flow, Gobo shake, Bi-directional rotation

CMYKCMY wheel,linear CTo function
3 FrostsLight+MediumtHeavy
Prism 112 Facet prism+6 Linear prism+2 Linear prism
Prism 2

6-Facet prism+ 24-Facet prism+3 Linear prism+

6 Linear prism


Work Environment
Ambient Temp

-20℃-45℃

IP RatedIP66
Certification

CE
