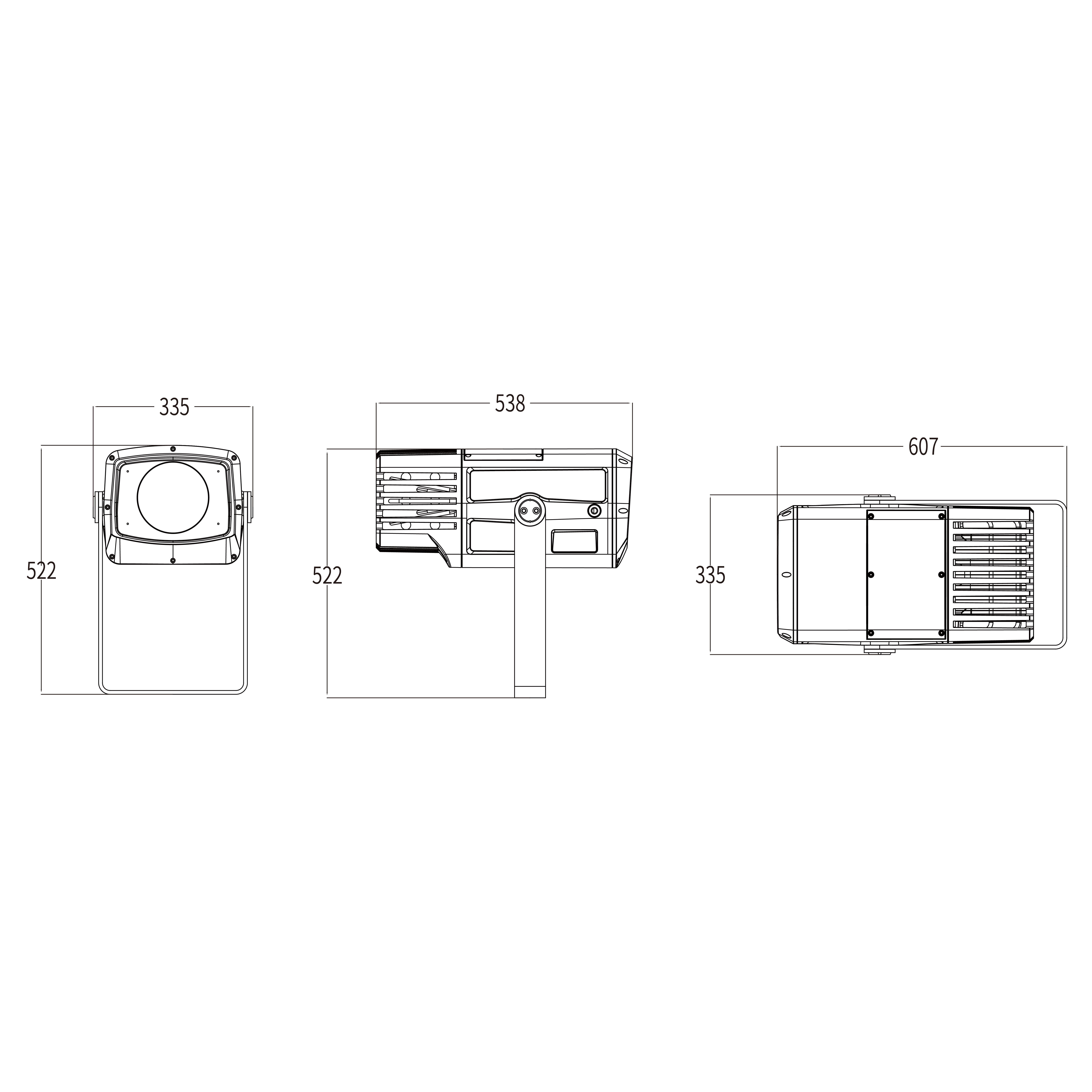

Dimension drawing
Eidolon Gobo Projection
E6
Eidolon E6 is a 450W LED high-power outdoor waterproof gobo Framing Projector. It features a die-cast magnesium alloy housing, an IP66 protection rating, natural cooling technology, and an intelligent temperature control system to ensure stability and reliability. With a manual zoom range of 10°-55°, precise angle positioning, it is suitable for large-area, long-distance, and precise projection over extended periods. Equipped with an 8+1 color wheel, a 6+1 rotating gobo wheel, and prisms, it can achieve rich and colorful animated effects. The flexible integrated Framing system meets personalized projection needs. It is suitable for theme parks, amusement parks, landmark buildings, architectural facade, outdoor performances, and other venues.
/upload/images/product/20251010/17600577683378383.png
Light source
400W (cool white LED module)
/upload/images/product/20251010/17600577737558917.png
Angle
10°-55°(Manual zoom)
/upload/images/product/20251010/17600577775319111.png
Weight
23kg
/upload/images/product/20251010/17600577815581129.png
Max.Power
450W
TECHNICAL PARAMETER
MAX. POWER

450W

LIGHT SOURCE

400W(cool white LED module)

ANGLE

10--55 (Manual zoom)

DISPLAYOn board Control, 0-25Hz Strobe
CON PERSONALITYSTANDARD(14CHS),BASIC(11CHS)
ROTATING GOBO

1 rotating gobo wheels (6+open interchange glass gobos),

Gobo-flow effect, Gobo shake, Bi-directional rotatio

COLORS

One color wheel (8 dichroic-flters+open, Rainbow flow effect)

PRISM

1 x3Fprism + 1 x4Flinear prism

FOCUSManual Focus
ANIMATION WHEELBi-directional rotation, Speed adjustable
FROST1 motorized frost flter
FRAMING SYSTEMManual Framing
DIMENSIONS(L*W*H)607x335x250mm


Download materials

Product brochure
  • E6 leaflet
    2025-10-10
    Down
Product lamp library
CAD
User manual
  • E6 specification
    2025-10-10
    Down
  • E6 specification
    2025-09-17
    Down
