Live-action film

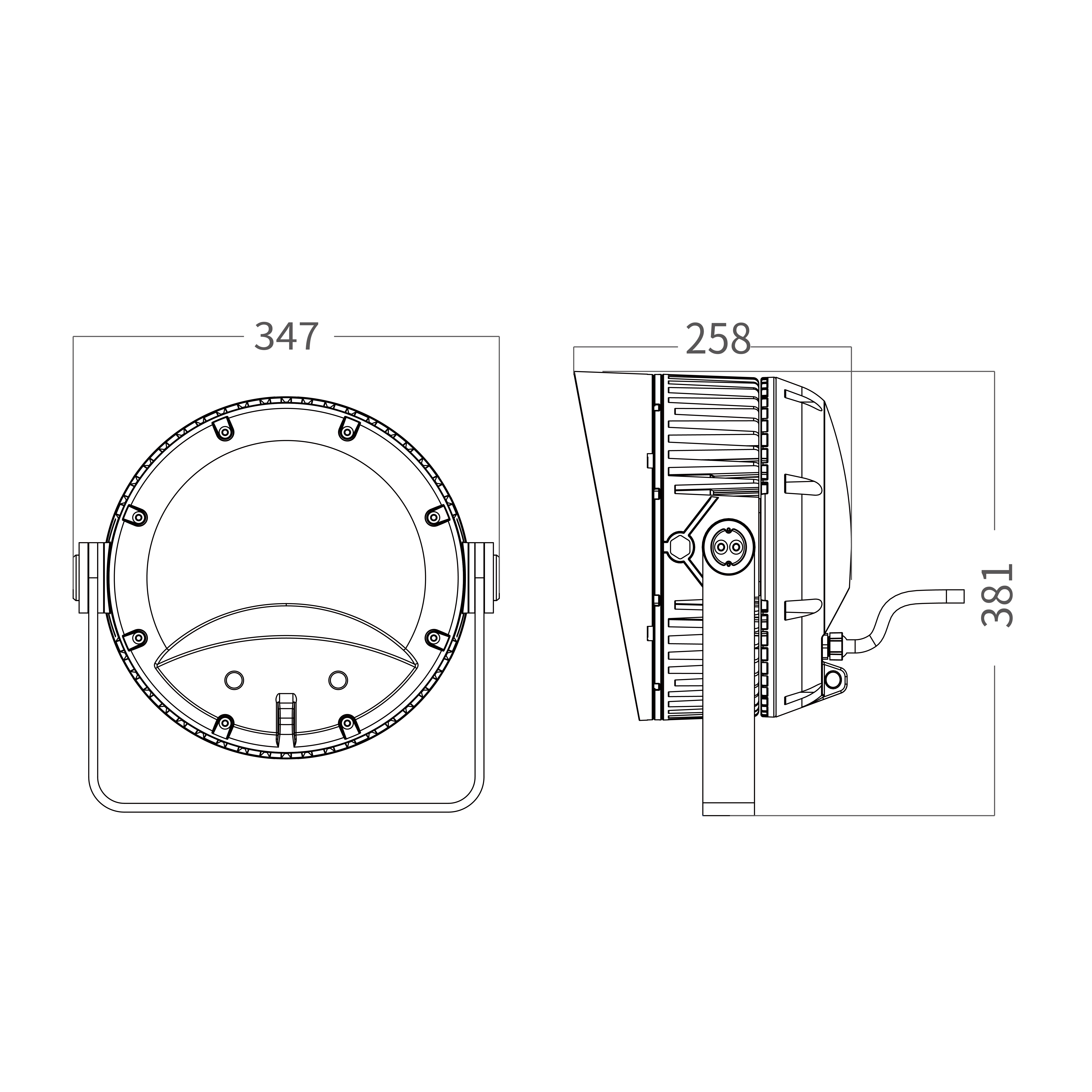

Dimension drawing

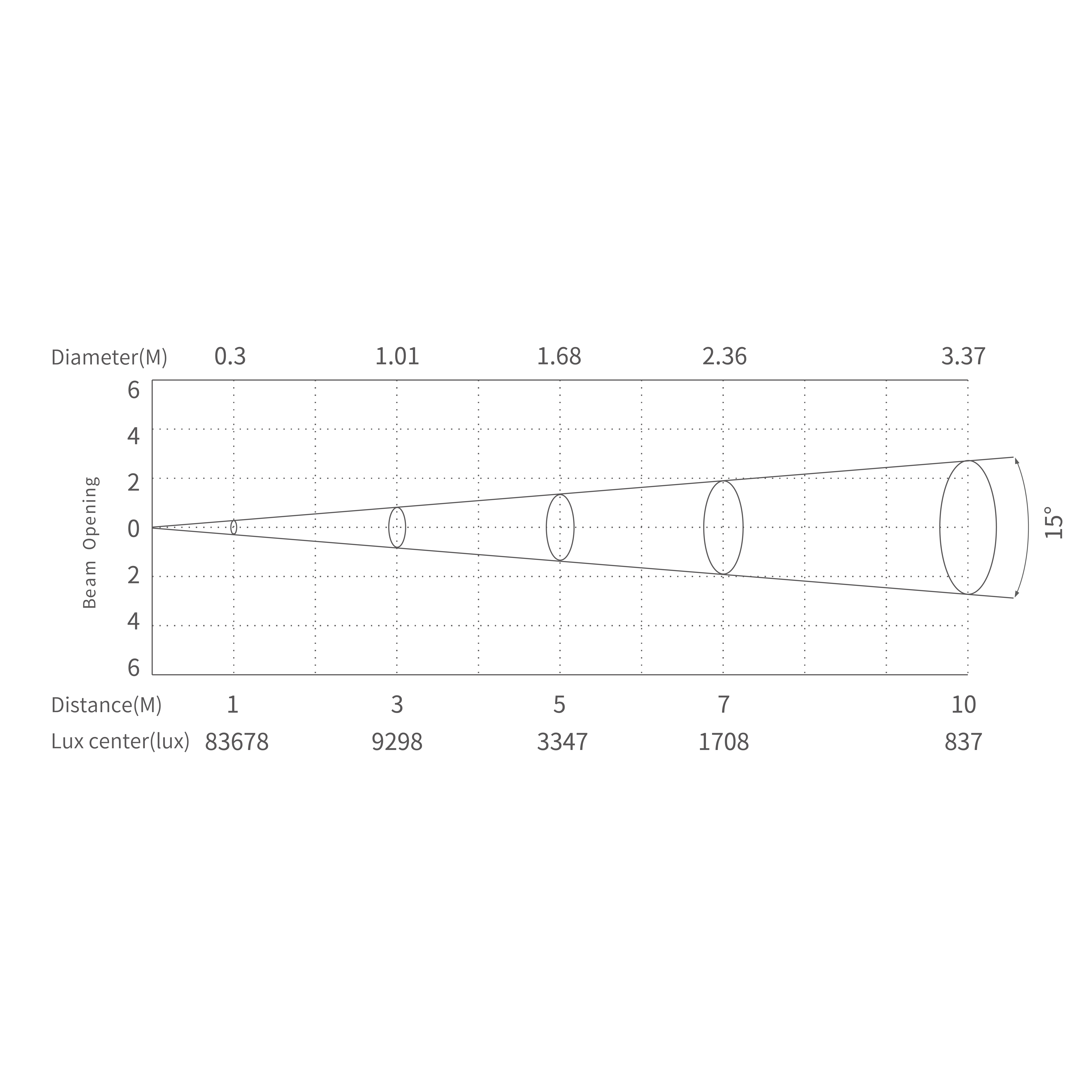

Illuminance diagram
Round floodlights
KOLORMAX Ks5, use of lightweight aviation aluminum, energy saving design, the weight of the whole fixture only 12kg, green lightingenergy consumption ratio of 1958lm/kg, high-eficiency power 4-in-1 RGBL LED chip, with a new heat dissipation distribution structure, toensure that LED in high-intensity operation stable and reliable, durable. Unique high-end optical design,easily get an accurate mixed singlecolor or multi-color, and the light efficiency up to 68lm/w, leading the new concept of lighting energy saving. suitable for venues, bridgestunnels, park landscape and other outdoor environment, KOLORMAX Ks5, excellent lighting for architectural and landscape
/upload/images/product/20251009/17599741859442179.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599741861960231.png
Luminous Flux
27219lm
/upload/images/product/20251009/17599741863347707.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599741861129797.png
CRI
Ra:85
/upload/images/product/20251009/17599741863863117.png
Weight
12kg
/upload/images/product/20251009/17599741869112916.png
Power
400W
TECHNICAL PARAMETER
Product code

AM1451KXLET

Max.Power

400W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

27219lm

Peak Intensity83838cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)347*258*381mm
weight12kg
