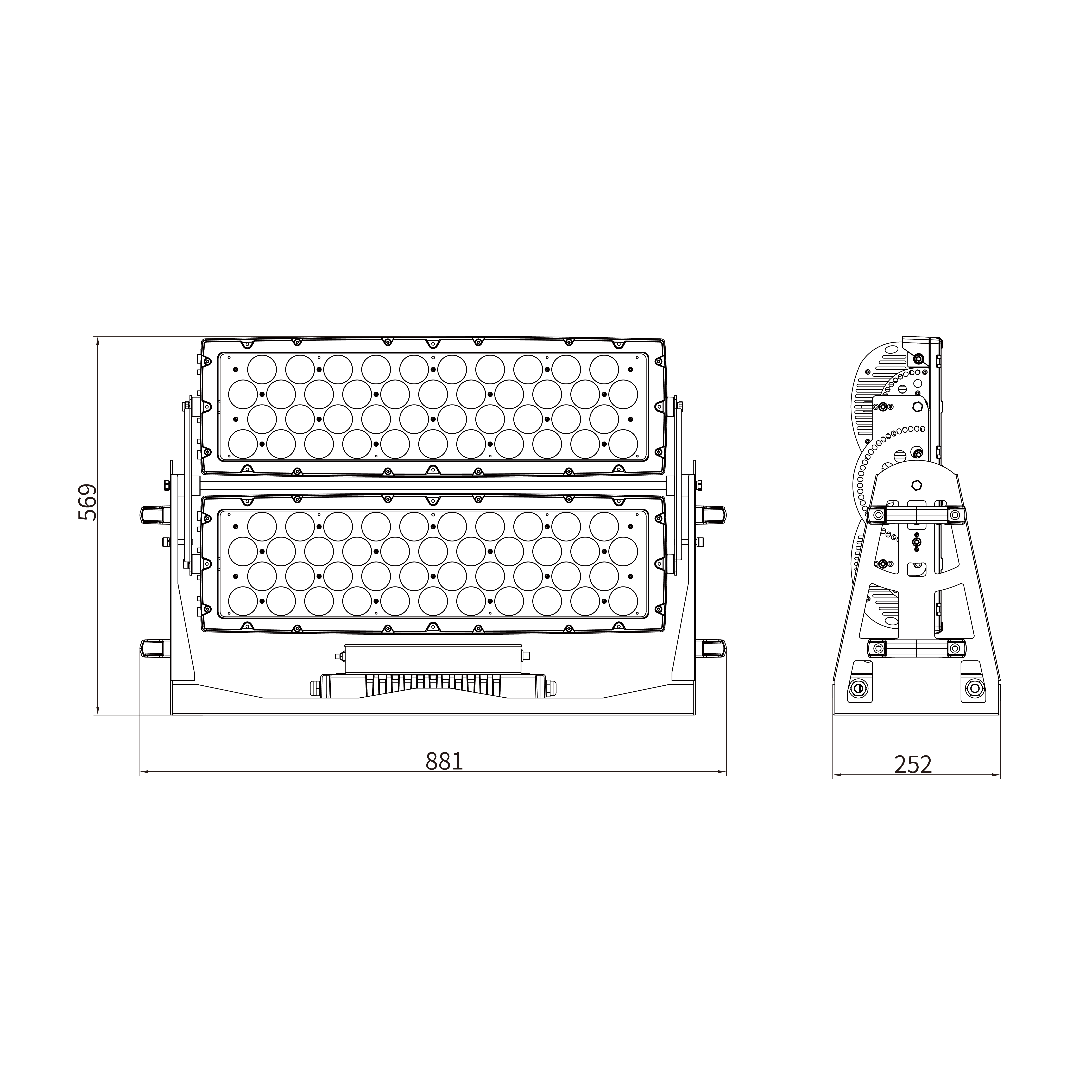

Dimension drawing

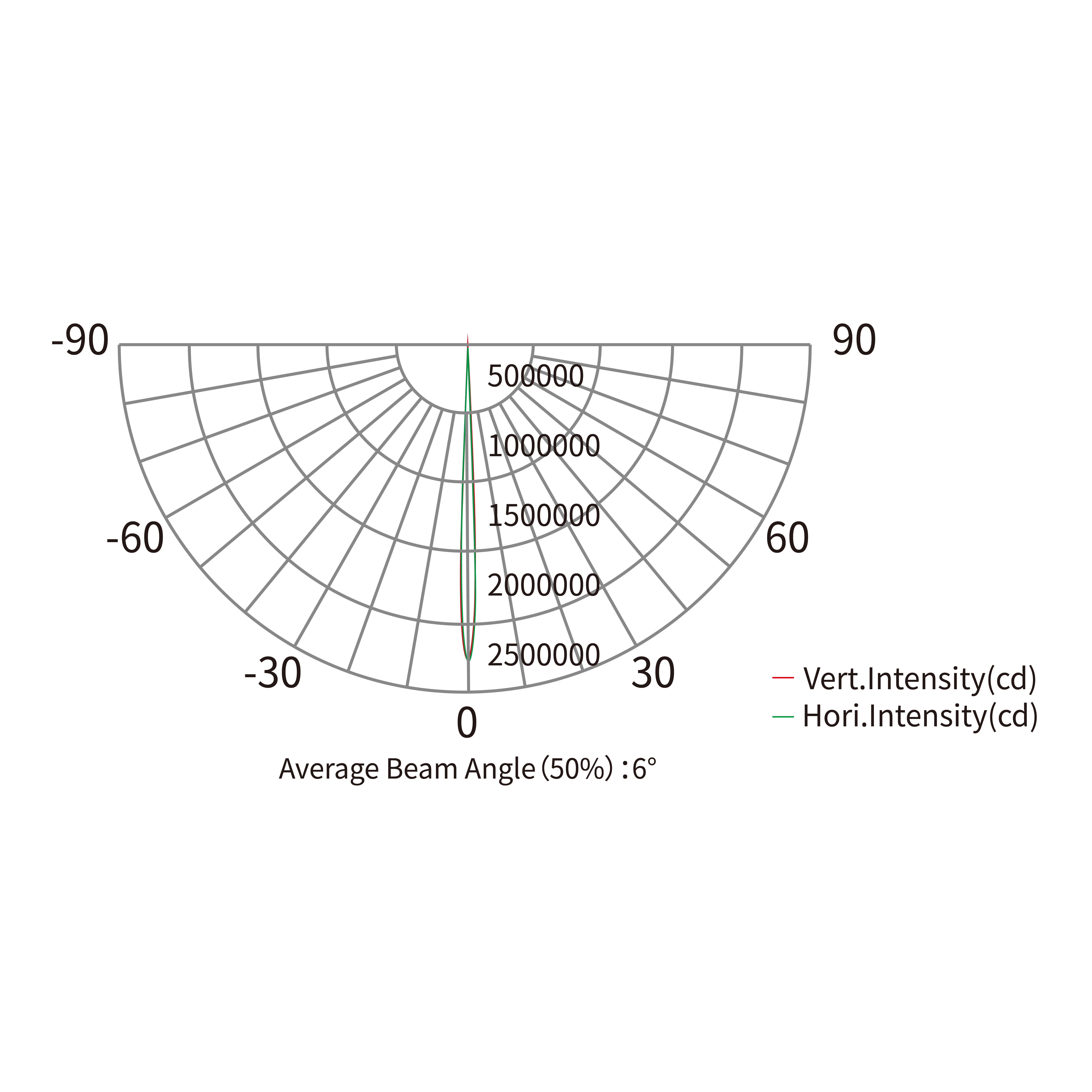

Illuminance diagram

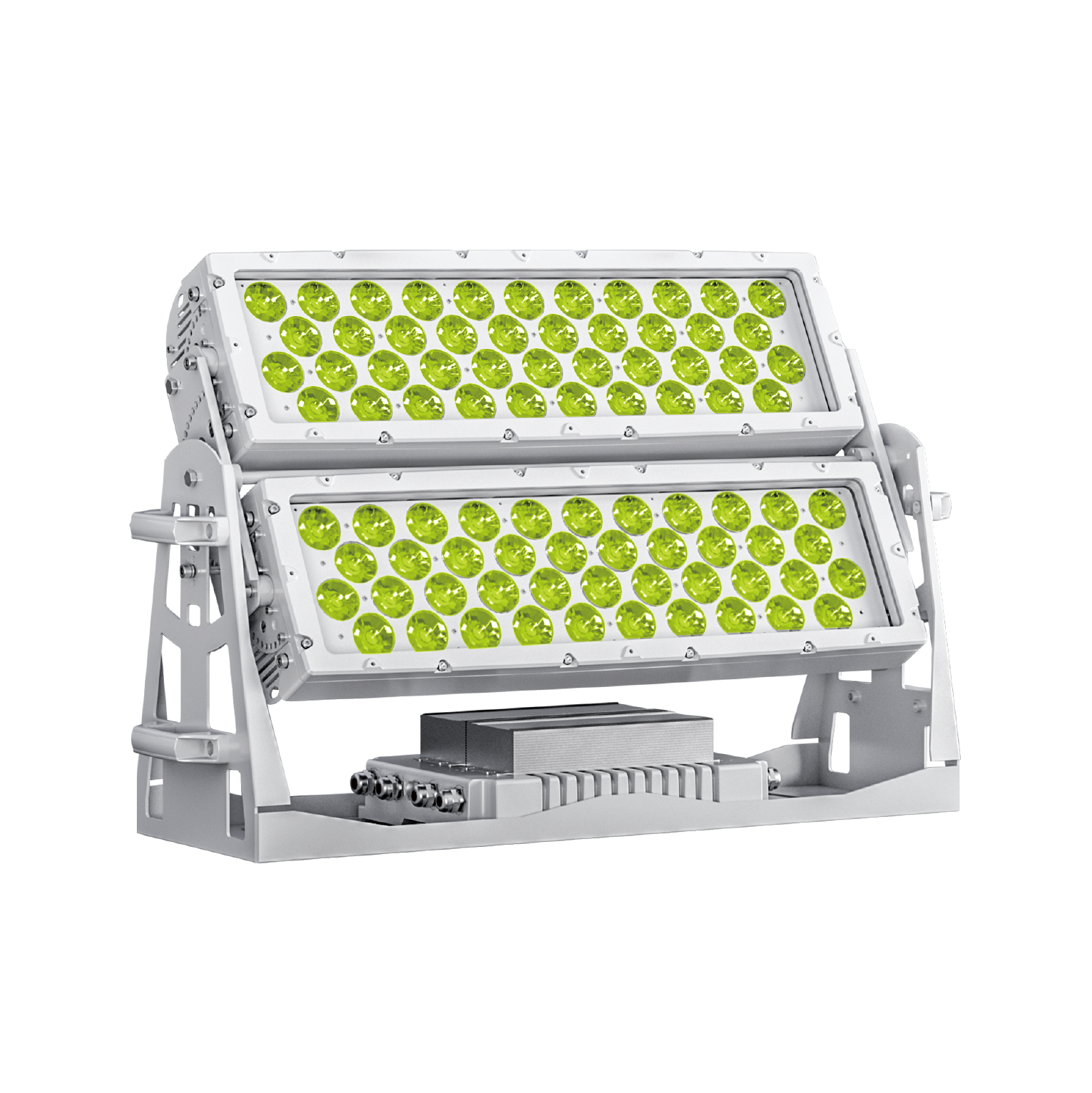

Multiple Color Flood Light
T84
The Narrow Square Light series realizes ultra-long-distance projection, which supports a wideangle lens for option, and also supports 4" ultra-narrow angle lens for super far distance wash.suitable to all kinds of landscapes, historical sites, building facades, high towers, bridges, largestadiums, and commercial complexes.
/upload/images/product/20251008/17598936743492443.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251008/17598936828551602.png
Luminous Flux
40529lm
/upload/images/product/20251008/17598942394440864.png
Angle
6°、10°
/upload/images/product/20251008/17598942623800581.png
weight
45.3kg
/upload/images/product/20251008/17598942656683018.png
Power
1200W
TECHNICAL PARAMETER
Product code

T84

Max.Power

1200W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux40529lm
Peak Intensity2279424cd（6°）
CTO1800K-10000K
Built-in colors

24 preset colors

Con Personality

DMX512，RDM

Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)881*252*569mm
weight45.3kg


Download materials

Product brochure
  • T84 leaflet
    2025-10-10
    Down
Product lamp library
  • T84 MA2
    2025-10-11
    Down
  • T84 AVOLTES
    2025-10-11
    Down
CAD
  • T84 CAD
    2025-10-22
    Down
User manual
  • T84 specification
    2025-10-22
    Down
