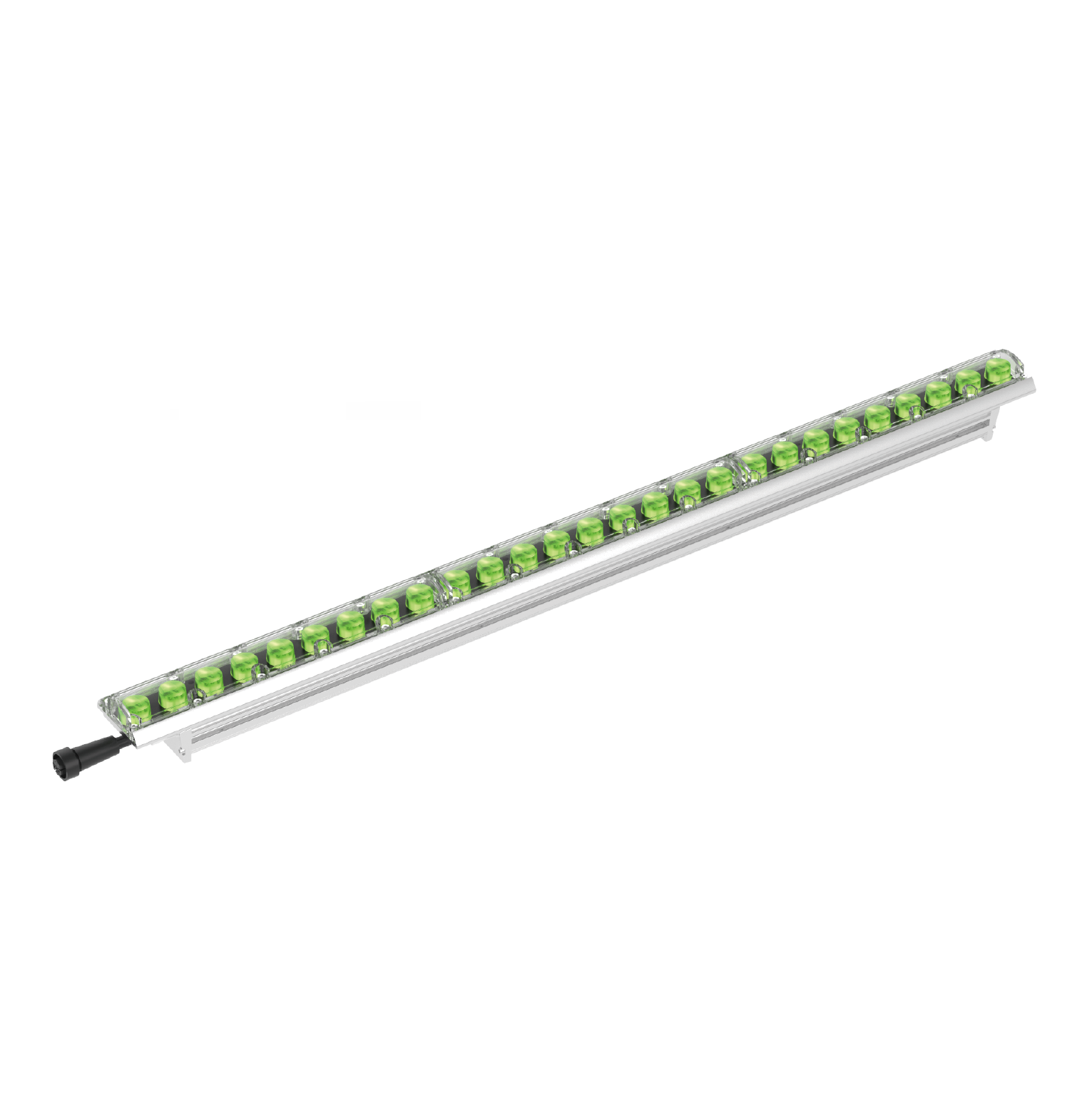

KL3_画板 1

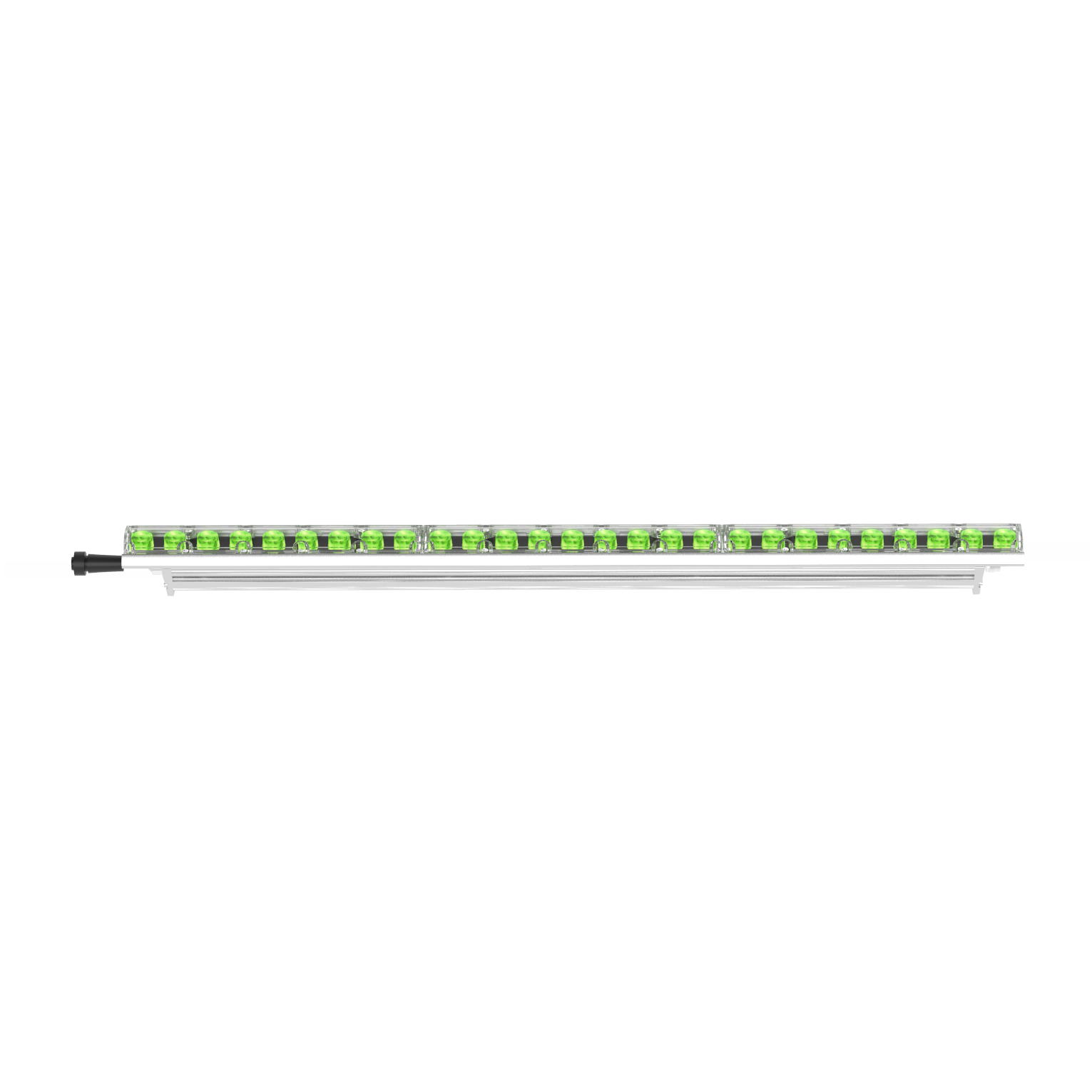

KL3_画板 2
KL3_画板 5
KL3_画板 7
Live-action film

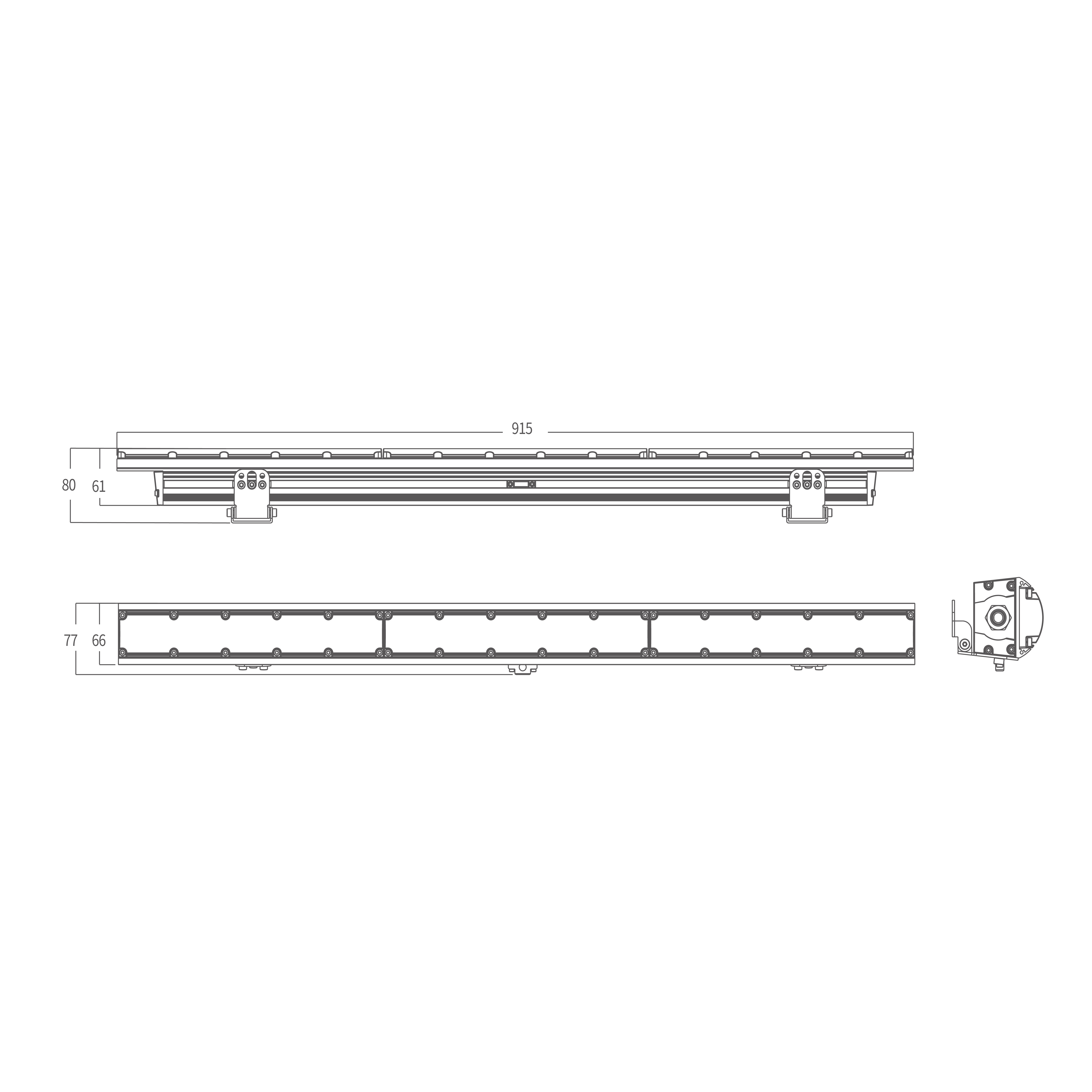

Dimension drawing

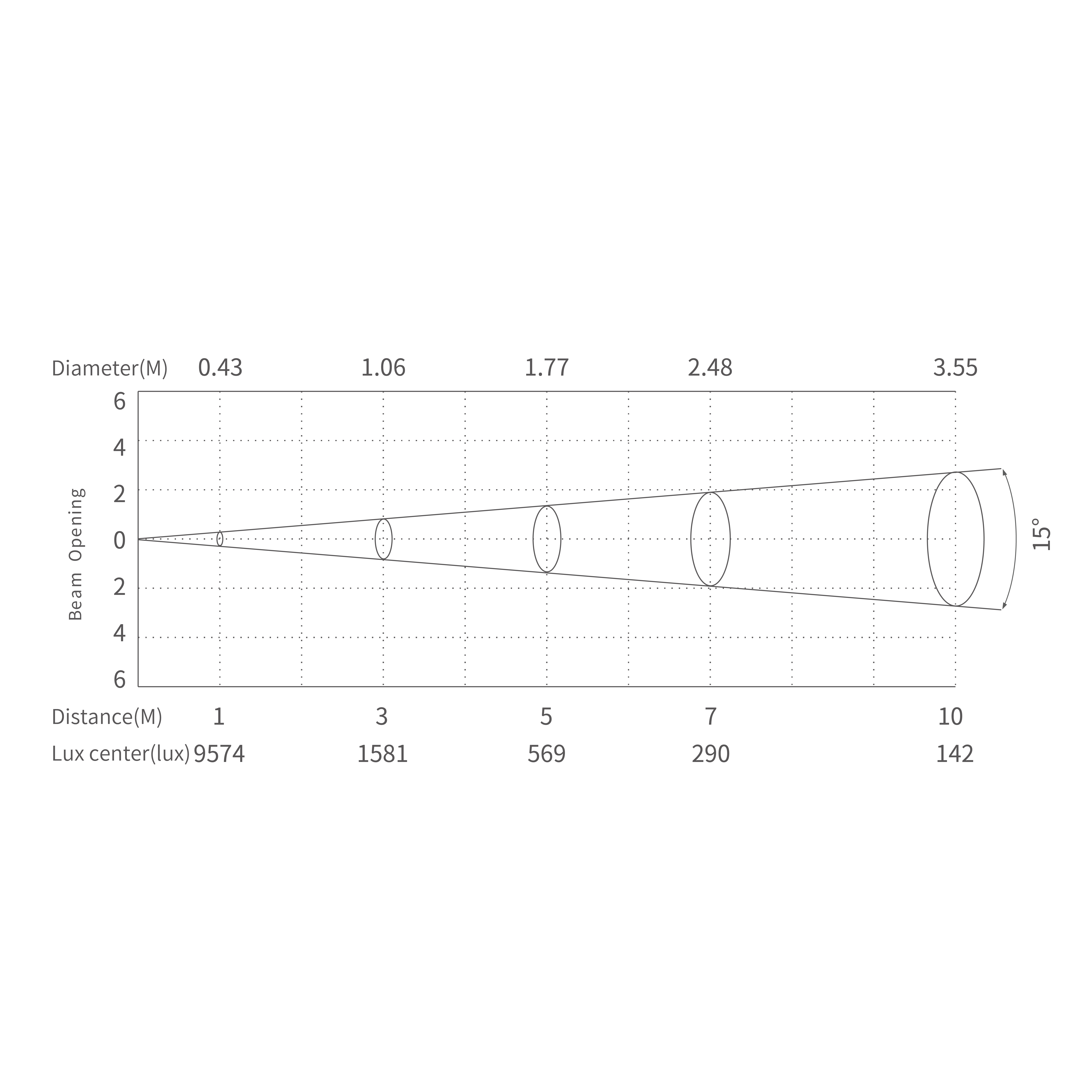

Illuminance diagram
Linear graze
KOLORMAX KL3, the selection of lightweight,low-carbon environmental protection design, the weight of the whole fixture is only 3.3kg,green lighting energy consumption ratio of 1950lm/kg, innovative high-power 4-in-1 RGBL LED chip, integration ofunigue high-end opticadesign, easily get an accurate mixed single color or multi-color, and the light efficiency up to 86lm/w, leading the new concept of lightingenergy saving. Seamless connection design, RDM, DMX512 and segment control, can achieve color gradual change, jump, chase and othereffects, the KL3 suitable for large building lighting projects, like commercial building, elevated overpasses, building external wallslandmarks and other facade wash. KOLORMAX KL3 makes every space lighting with charm.
/upload/images/product/20251009/17599784045398244.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599784044968614.png
Luminous Flux
7800lm
/upload/images/product/20251009/17599784041452200.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599784046546494.png
CRI
Ra:85
/upload/images/product/20251009/17599784049785301.png
weight
3.3kg
/upload/images/product/20251009/17599784049536401.png
Power
90W
TECHNICAL PARAMETER
Product code

AM713KXLET

Max.Power

90W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

7800lm

Peak Intensity14956cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)915*66*61mm
weight3.3kg


Download materials

Product brochure
  • KL3 leaflet
    2025-10-09
    Down
Product lamp library
  • KL3 MA2
    2025-10-09
    Down
CAD
  • KL3 CAD
    2025-10-10
    Down
User manual
  • KL3 specification
    2025-10-09
    Down
