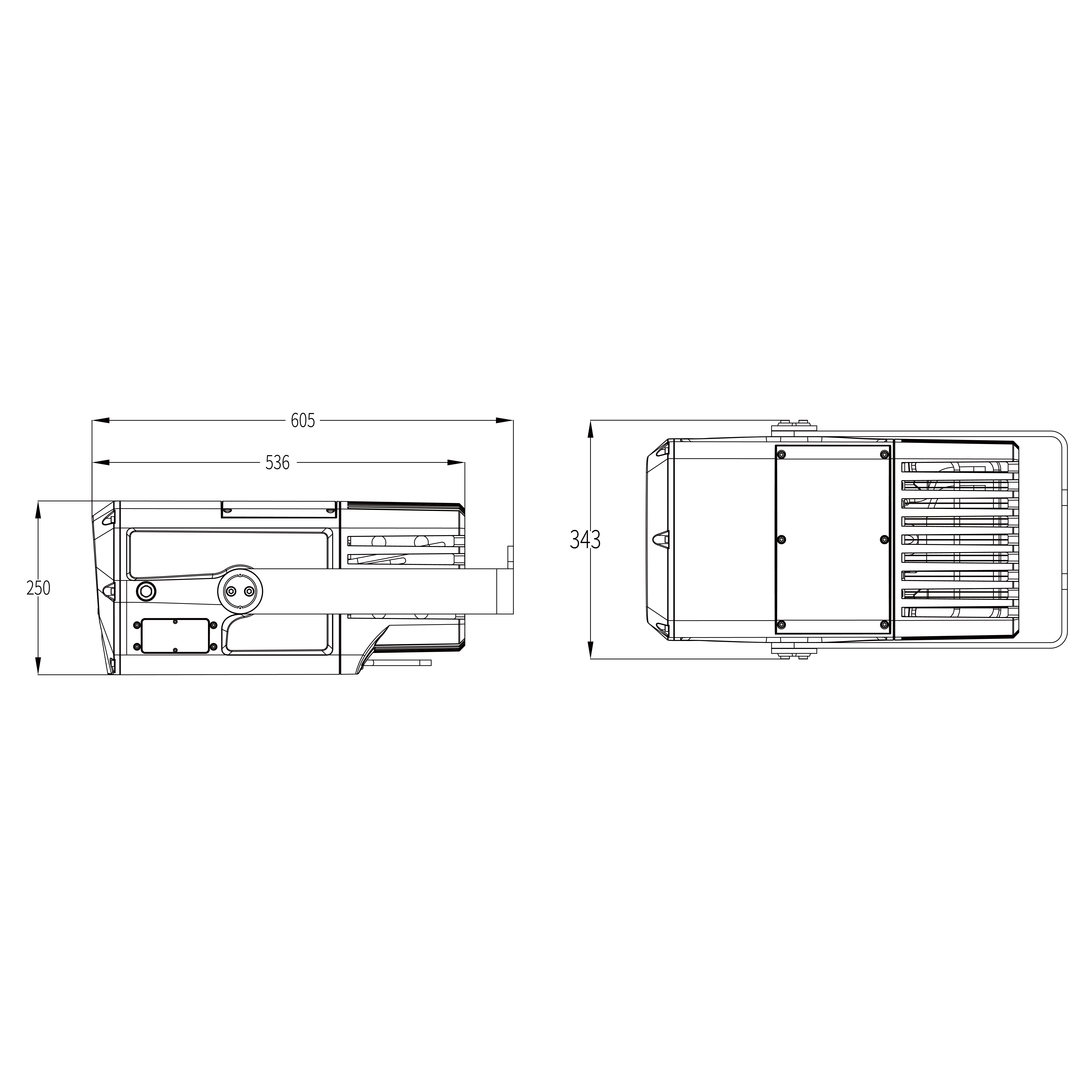

Dimension drawing

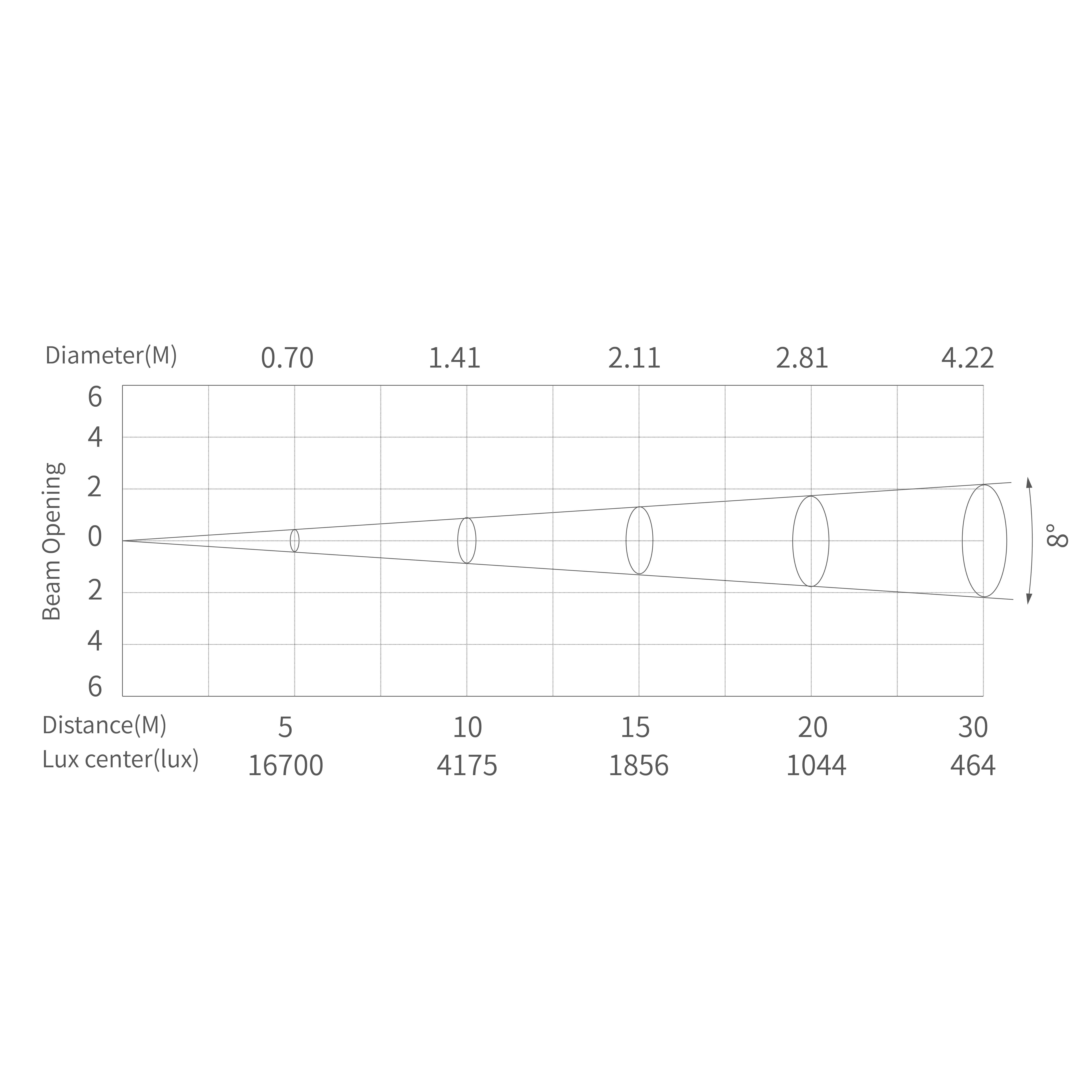

Illuminance diagram
Eidolon Gobo Projection

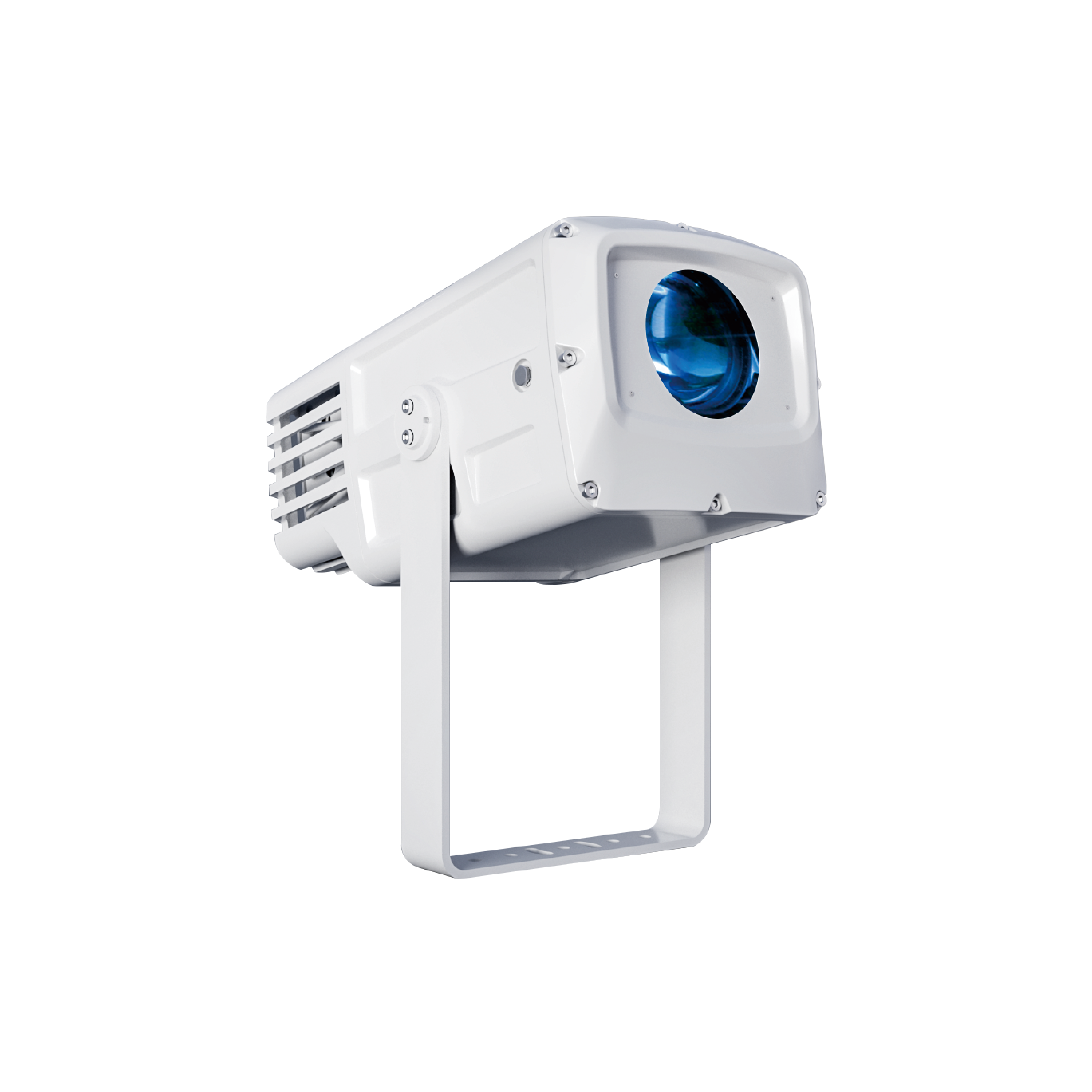

E3
Eidolon E3 is extremely competitive outdoor IP66 gobo project. The die-cast aluminum housing and natural cooling heat dissipation technology ensure the E3 has reliable stability. With electronic zoom of 8-40°, it can be used for large-area and long-distance projection, the built-in automatic focusing system can quickly adjust the light spot clearly. Equipped with the CMY color-mixing system and 7 color filters, 7 rotating gobos, the dynamic effect wheel, 4F prism can realize rich and colorful animation effects. The OLED display with touch buttons can be the control system easily at site. It is applied in theme parks, amusement places, landmark buildings, building complexes, outdoor performances and other places.
/upload/images/product/20251010/17600624757936654.png
Light source
/upload/images/product/20251010/17600630272513718.png
Angle
/upload/images/product/20251010/17600630344098891.png
Weight
/upload/images/product/20251010/17600630513489059.png
Max.Power
TECHNICAL PARAMETER
MAX. POWER

350W

LIGHT SOURCE

350W (cool white LED module)

ANGLE

8°_40°(electronic zoom)

DISPLAYOn board Control,0-25Hz Strobe
CON PERSONALITYSTANDARD(20CHS), BASIC(17CHS)
ROTATING GOBO

7 Gobos+White,Gobo-fow effect, Gobo shake.

Bi-directional rotation

COLORS

One color wheel (7 color-flter+White.

Rainbow flow effect )

PRISM

One 4F prism with bi-directional rotation, Speed adjustable

CMYCMY sysem, Built-in Macro
FOCUSMotorized linear focus
ANIMATION WHEELBi-directional rotation, Speed adjustable
FROST1 Frost flter
DIMENSIONS(L*W*H)605x343x250mm
