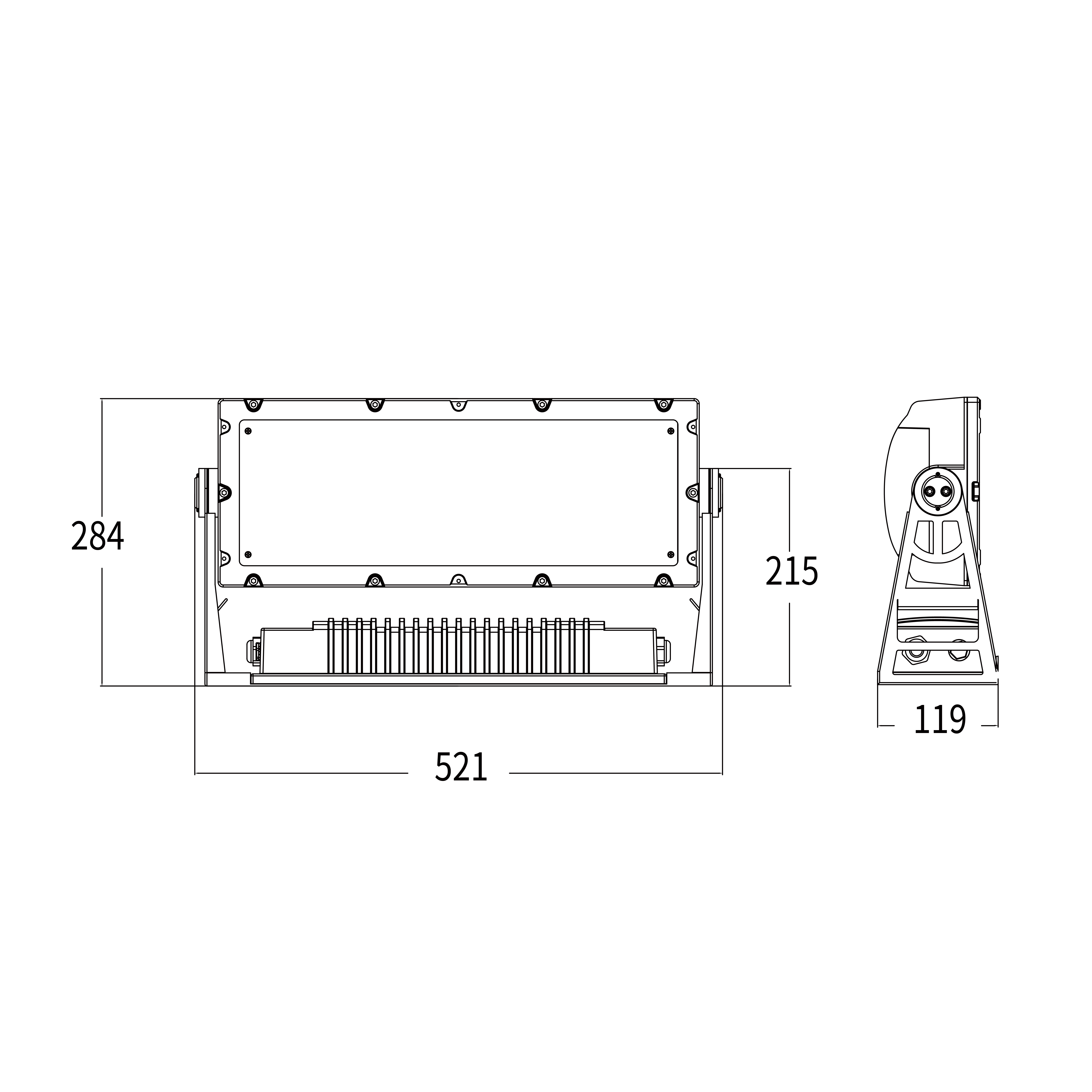

Dimension drawing

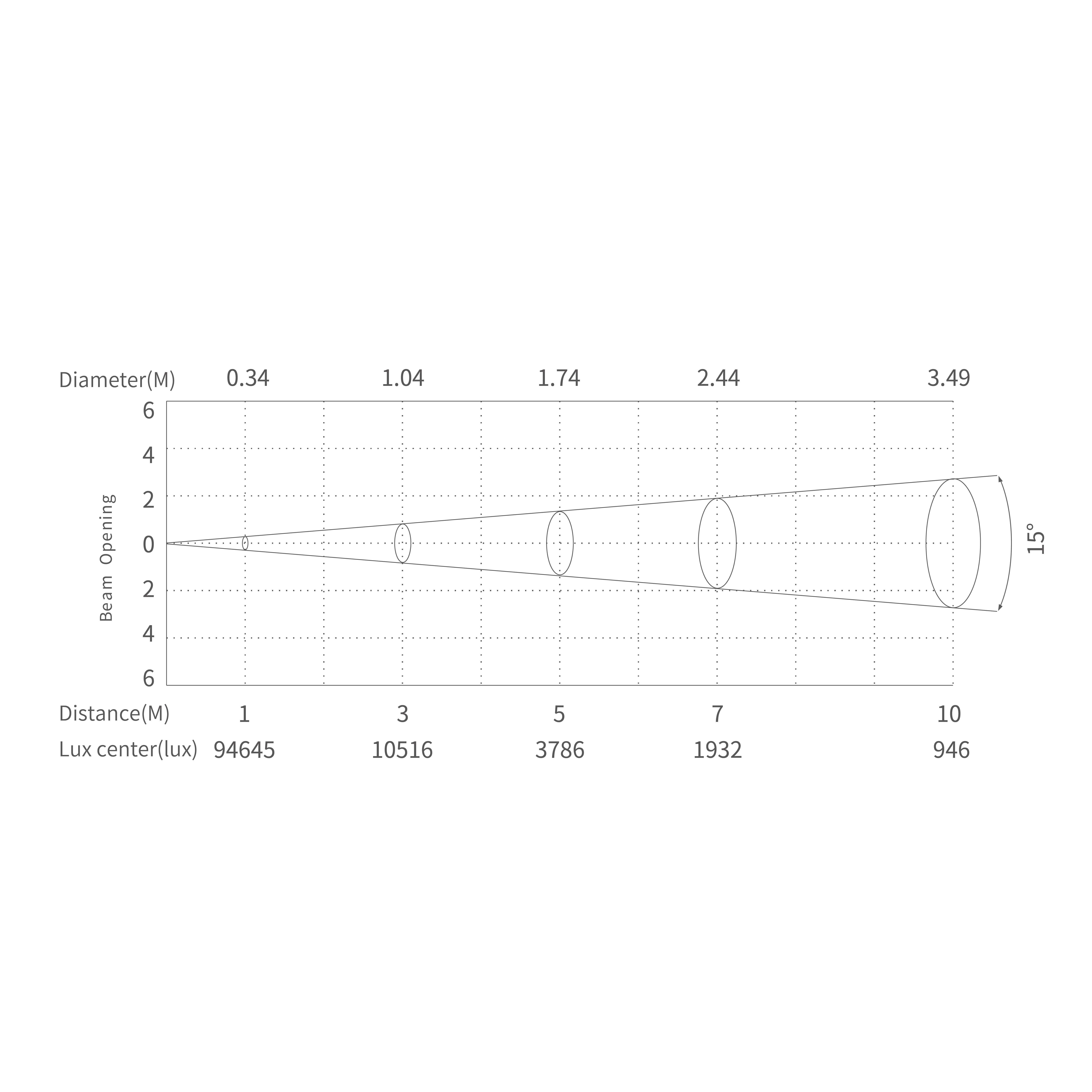

Illuminance diagram
Squre floodlights
KOLORMAX KE3.use of lightweight aviation aluminum, enerey saving design, the weight of the whole fixture only 11.4kg, green lighting energconsumption ratio of 2062lm/kg, high-eficiency power 4-in-1 RGBL LED chip, with a new heat dissipation distribution structure, to ensure thatLED in high-intensity operation stable and reliable, durable. Unique high-end optical design, easily get an accurate mixed single color ormulticolor, and the light efficiency up to 64lm/w, leading the new concept of lighting energy saving. it has a variety of lens angles optionssuitable for landscape, building, pedestrian street and other scenes. segment control with intelligent dimming technology makes the colorchange transition more delicate and naturally. Whether it is a landmark or a bridge, KOLORMAX KF3 can show extraordinary light effect for you.
/upload/images/product/20251009/17599820534535958.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599820533423561.png
Luminous Flux
25778lm
/upload/images/product/20251009/17599820539334036.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599820535180328.png
CRI
Ra:85
/upload/images/product/20251009/17599820535774283.png
weight
/upload/images/product/20251009/17599820531598102.png
Power
400W
TECHNICAL PARAMETER
Product code

AM1362KXLET

Max.Power

400W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

25778lm

Peak Intensity94826cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)521*119*284mm
weight11.4kg
