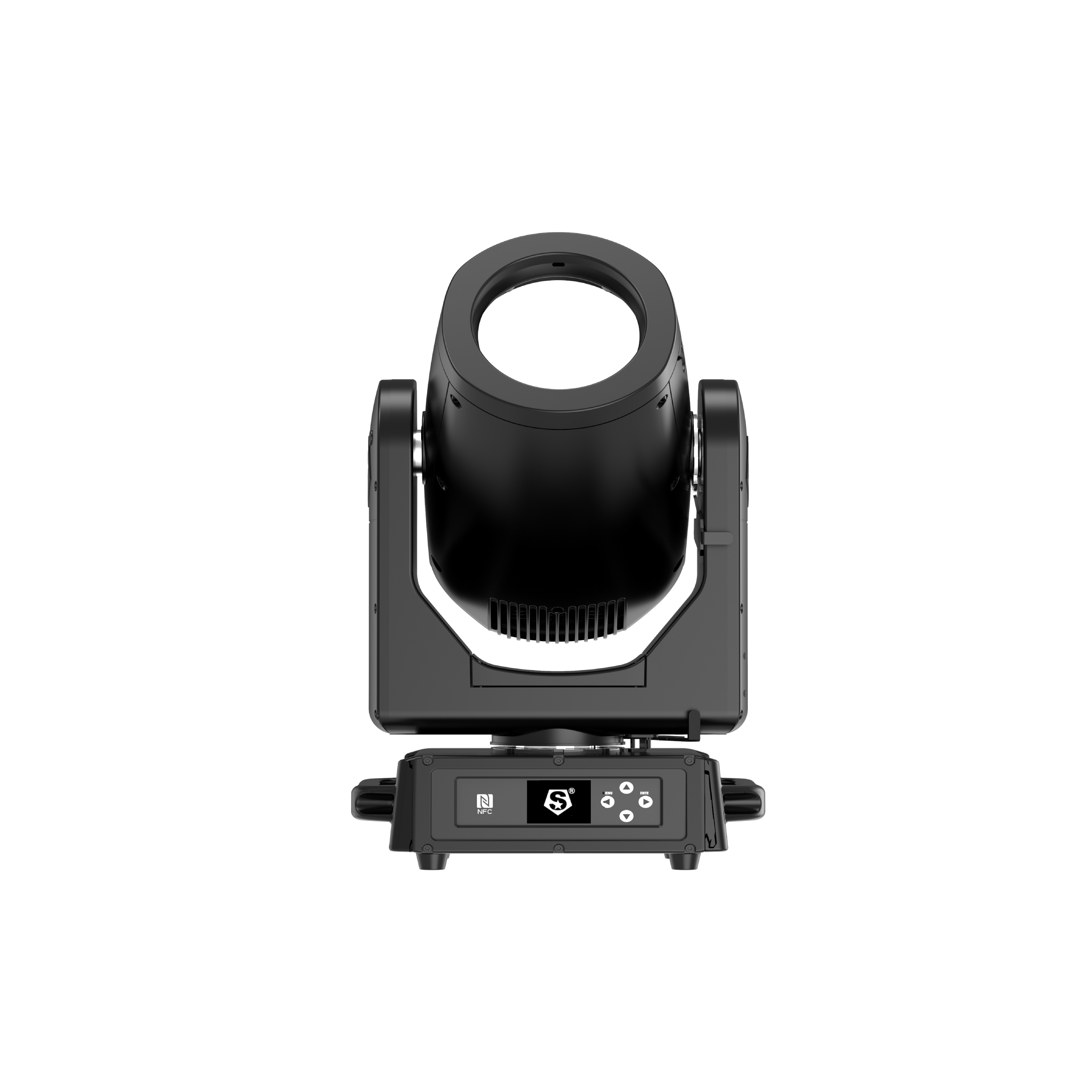

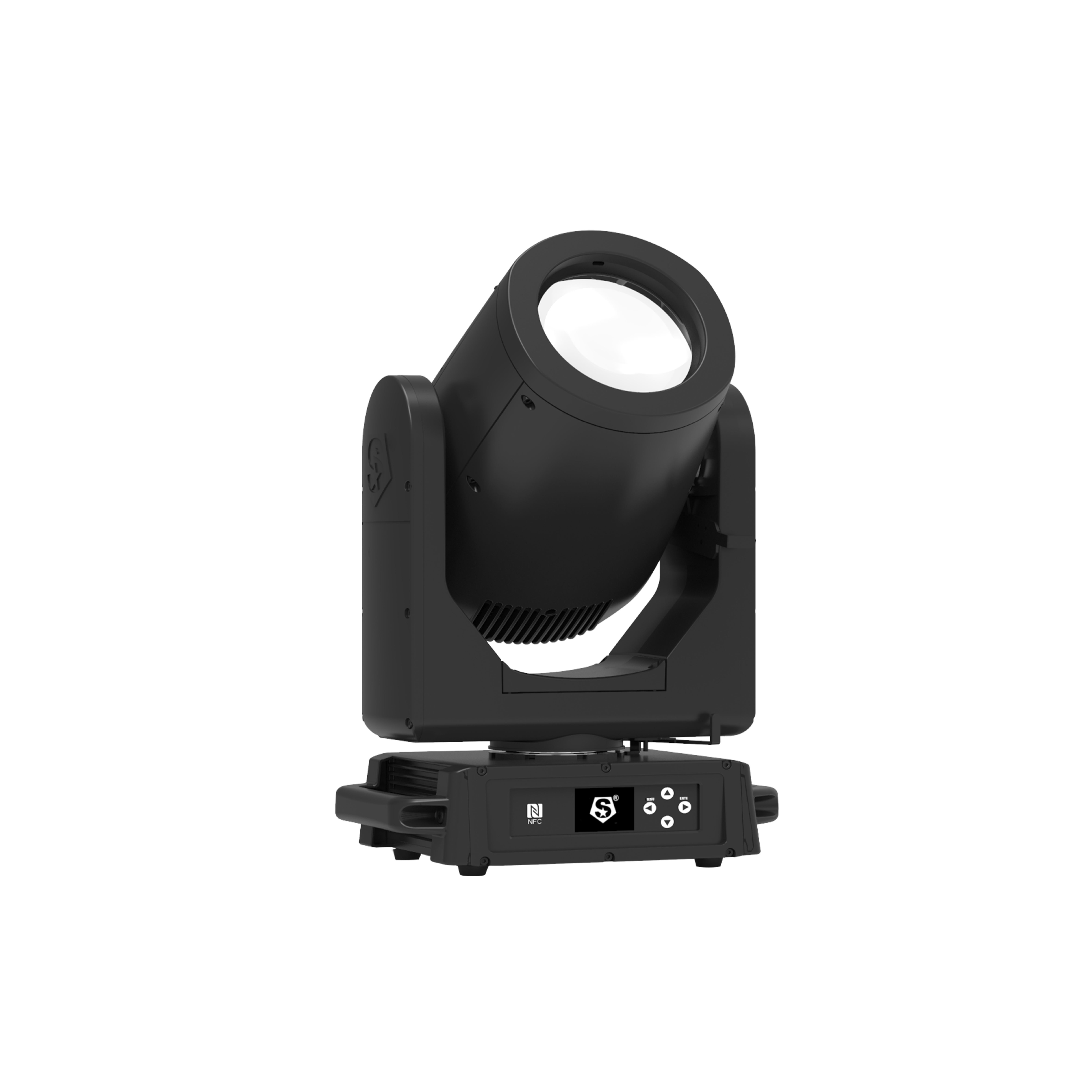

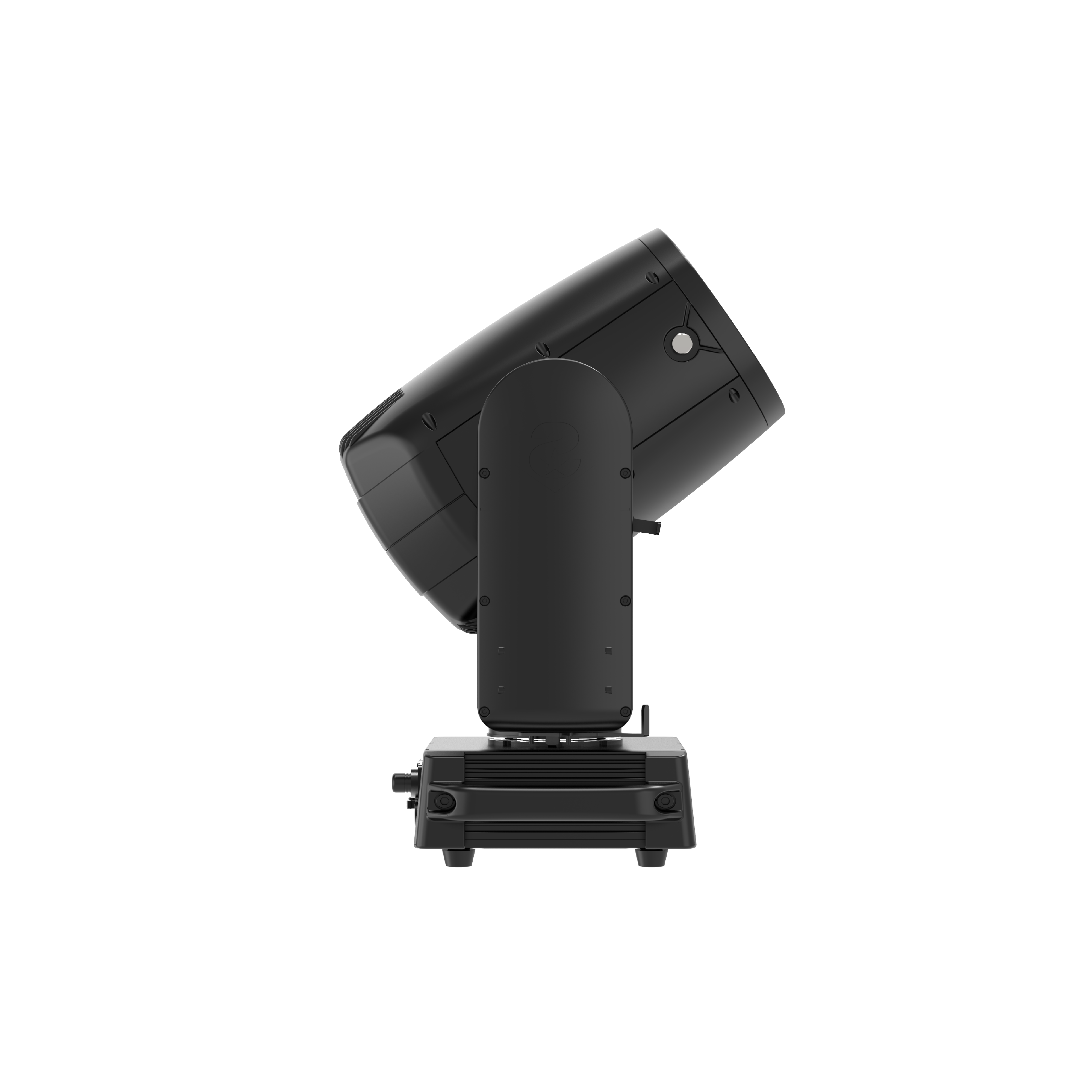

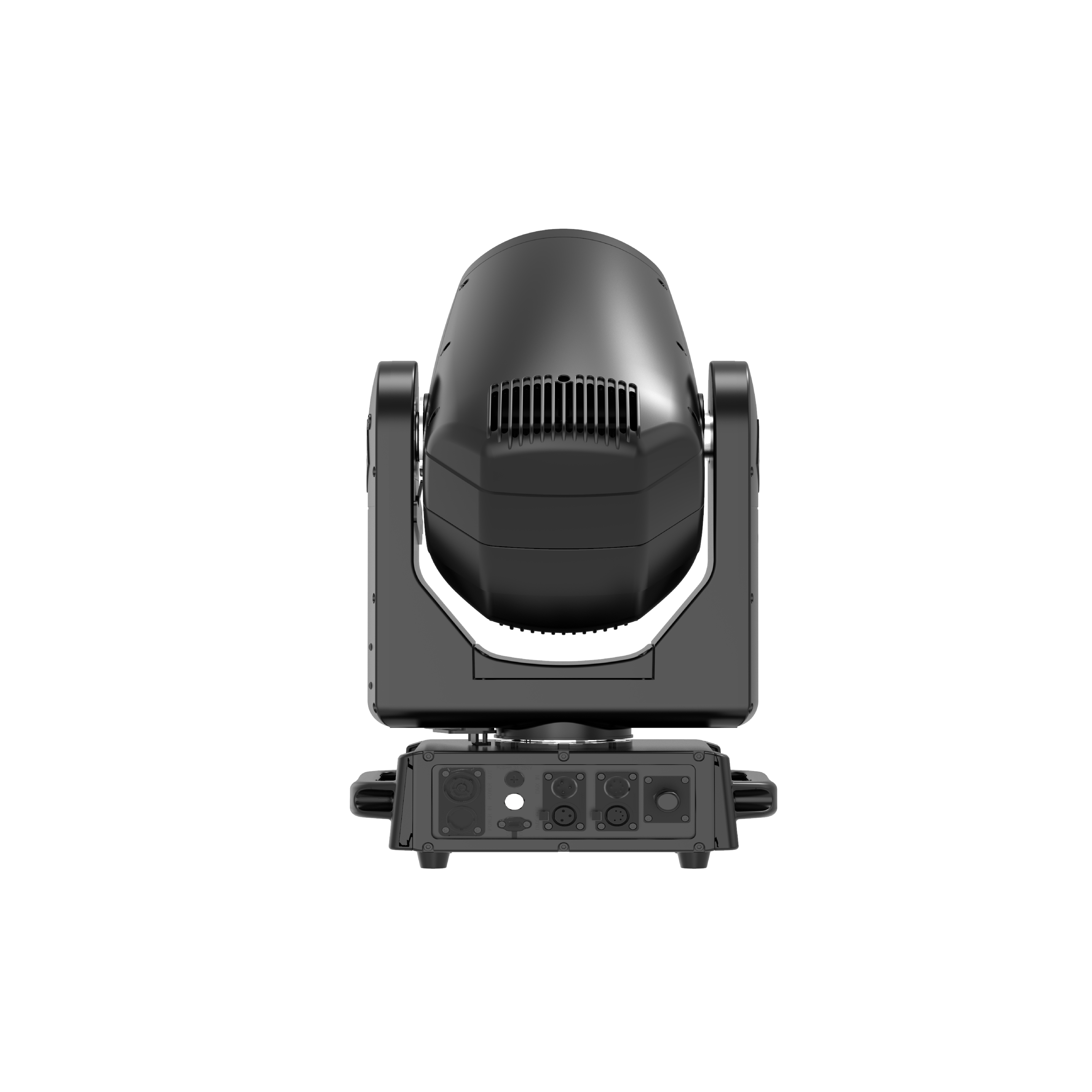

Live-action film

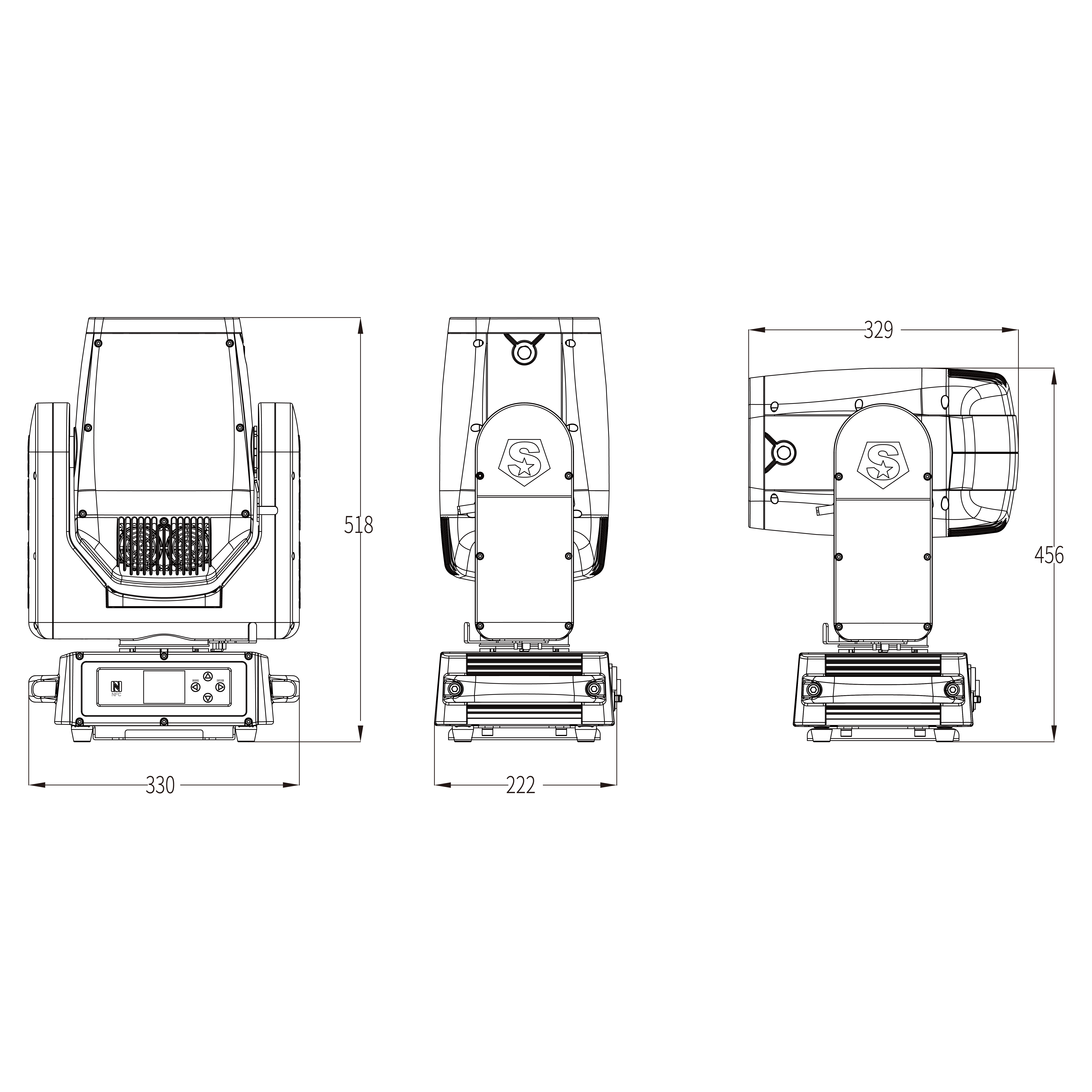

Dimension drawing

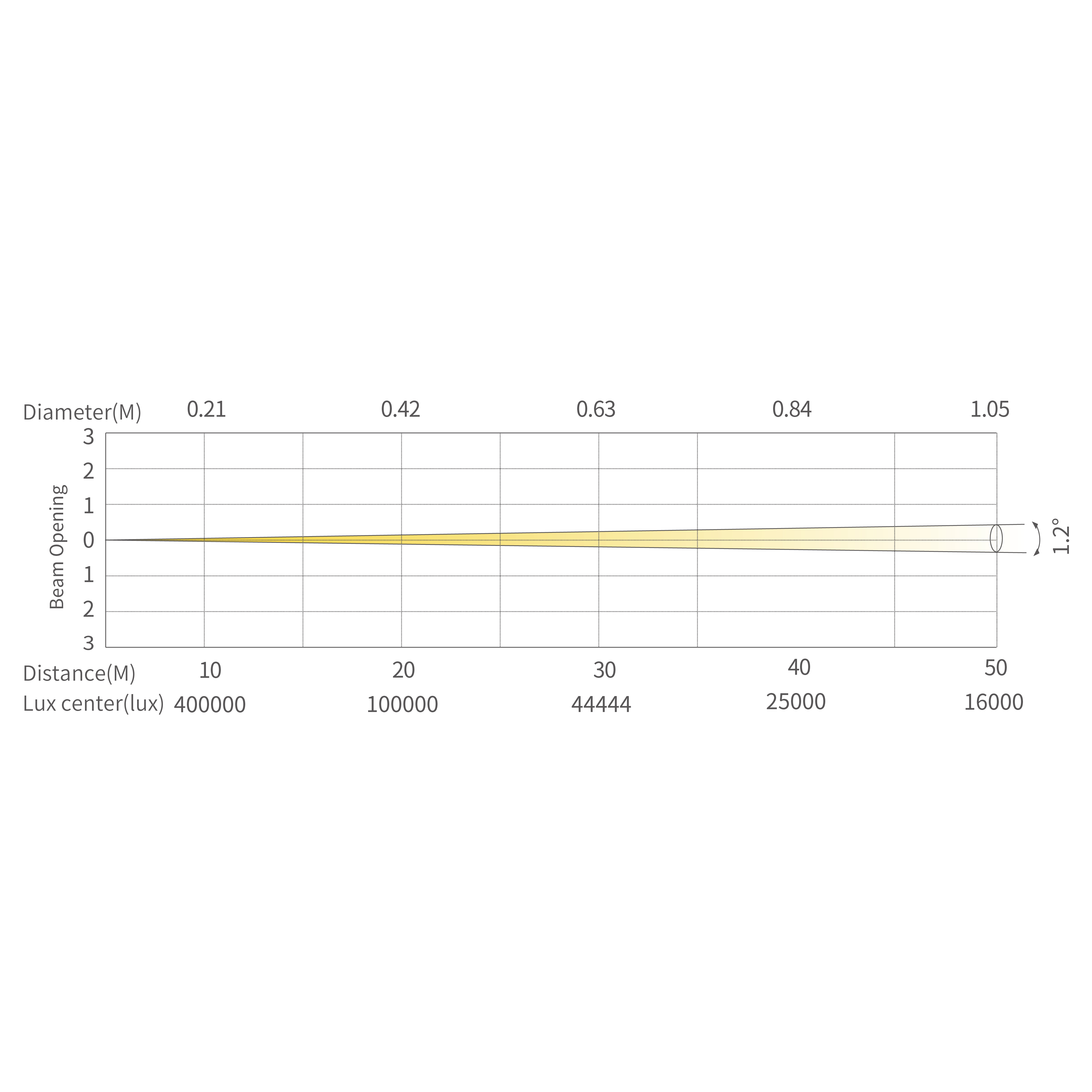

Illuminance diagram
Neptune Laser
BX one
Neptune BX one is an innovative fixture that uses a unique X-ray design to create an infinitely beam effect. 120W laser light source, 135mm large light aperture, 1.2° beam Angle , illuminance up to 100000lux at 20m. strong and sharp beam. equipped with rich gobos and prisms that can support various lighting effects. Professional CMY color mixing system help to switch the colors extremly smooth. Infinite X rotating effect, create 3D fantasy atmosphere. Using new aviation aluminum cover, lightweight only 19.6kg, IP66 protection perfect for indoor and outdoor.Suitable for urban landscape lighting, concerts, indoor performances and other applications.
/upload/images/product/20251009/17599780001717417.png
Luminous flux
3300lm
/upload/images/product/20251009/17599777605844494.png
Luminous flux
135mm
/upload/images/product/20251009/17599777608729483.png
Angle
1.2°
/upload/images/product/20251009/17599773366894881.png
Weight
21kg
/upload/images/product/20251009/17599777602582020.png
Max.Power
200W
Appearance
Size

330×222×518mm

casting

 Die casting magnesium

aluminu

Weight 19.6kg
ColorBlack


Control System
PanvTilt rotation

Infinite Pan, Tilt 270°(8-16 bit)

dimmingOpera dimming effect (0-100% 24Bit dimming)
Cooling systemForced convection
Control protocolDMX512、RDM、WDMX(optional、 NFC
Functional effect

Display control, custom mode, 0-25Hz stobe

Channel modeBASIC(19CH)、STANDARD(23CH)、EXTEND(25CH)


Effect synthetic system
Rotation gobo

12 rotation gobos

Colors1 color wheel, 19 color + white, rainbow water effect
CMYKCMY
prismone 24 facet prism +one 5 linear prism, can be overayed
Frost

one frost + one rainbow color whee!


Electrical Specs
Voltage

100-240VAC,50/60Hz

Power ConnectionPowerinput and output
Signal socket3pin or spin in and out
Max.Power

200W


Optical system
Light source

120W LASER

Angle1.2°(20m @ 100.000lx)
Lens diameter135mm
Luminous flux3300lm


Work Environment
Ambient Temp

-20℃-45℃

IP RatedIP66
CertificationCE


Download materials

Product brochure
  • BX one leaflet
    2025-09-18
    Down
Product lamp library
  • BX-ONE Vectorworks
    2025-09-18
    Down
  • BX-ONE AVOLTES
    2025-09-18
    Down
  • BX-ONE Depence
    2025-09-18
    Down
  • BX-ONE GDTF
    2025-09-18
    Down
  • BX-ONE MA2
    2025-09-18
    Down
CAD
  • BX-ONE CAD DRAWING
    2025-09-18
    Down
User manual
  • BX-ONE specification
    2025-09-18
    Down
