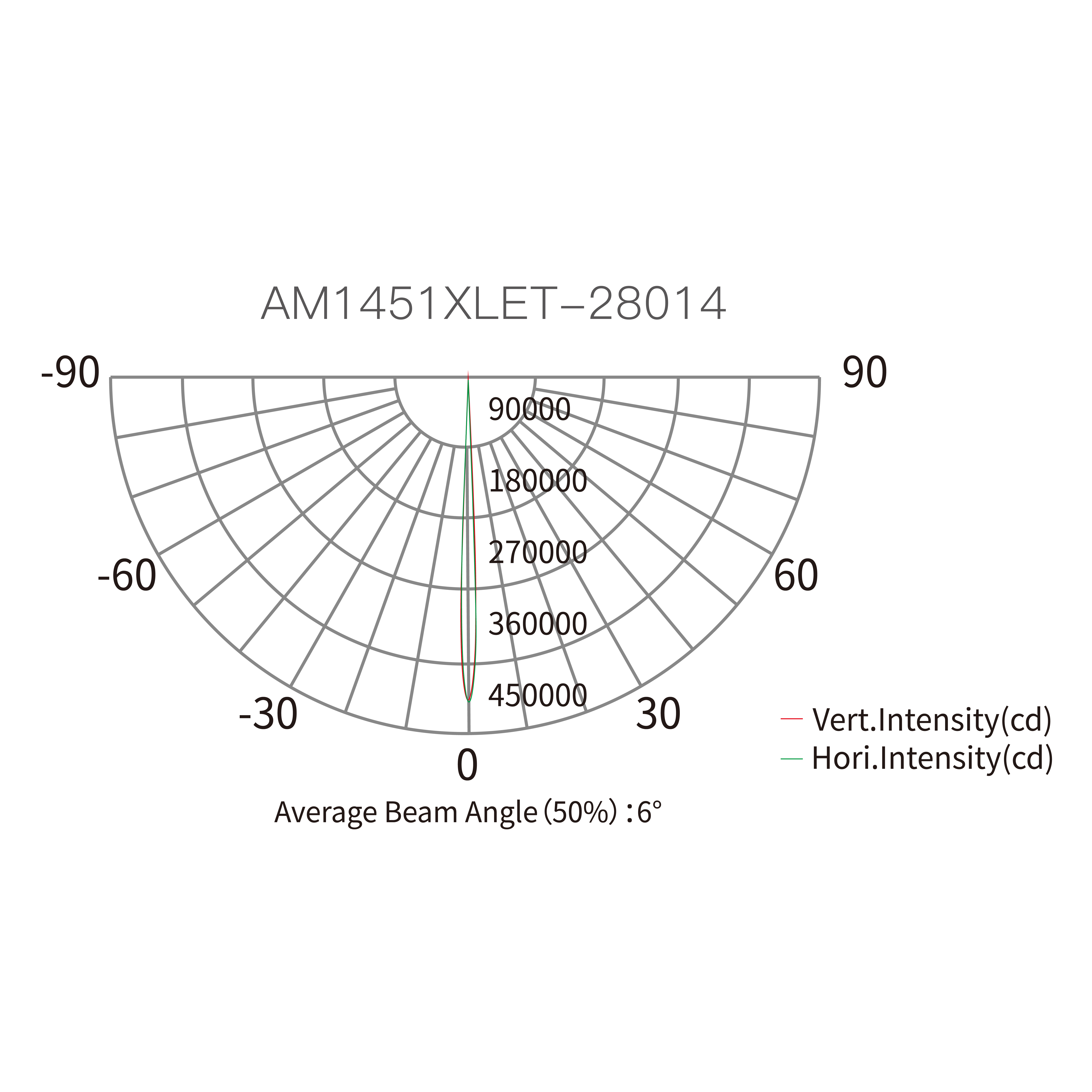

Illuminance diagram

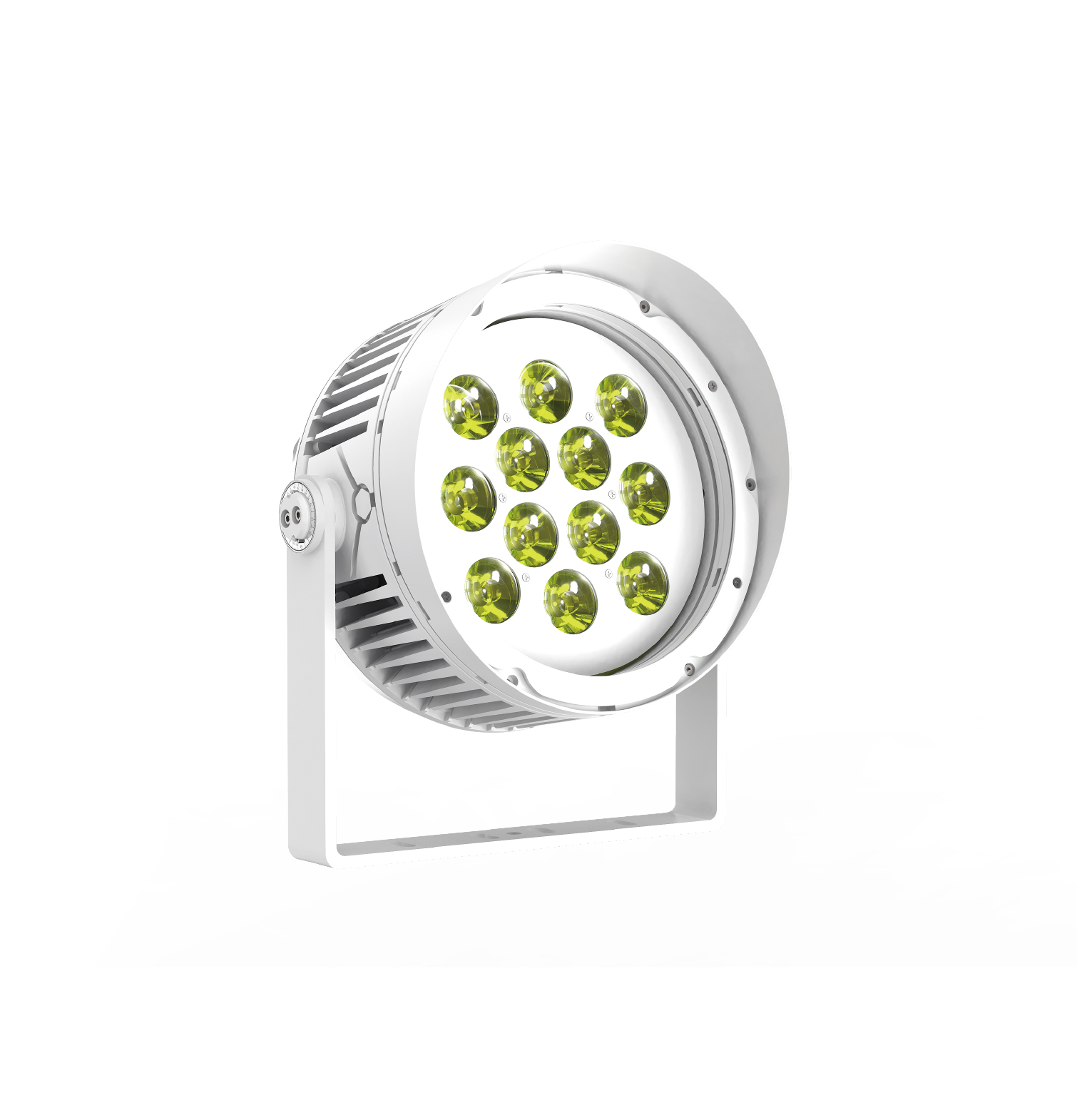

Mutiple Color Spot Light
P5
The Narrow Spot Light series realizes ultra-long-distance projection, which supports a wideangle lens for option, and also supports 4" ultra-narrow angle lens for super far distance washsuitable for all kinds of landscapes, historical sites, building columns, and small stadiums.
/upload/images/product/20251008/17598934352971591.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251008/17598934519852414.png
Luminous Flux
8079lm
/upload/images/product/20251008/17598934553916068.png
Angle
6°、10°
/upload/images/product/20251008/17598931335108759.png
weight
12KG
/upload/images/product/20251008/17598934722495661.png
Power
280W
TECHNICAL PARAMETER
Product code

P5-28014

Max.Power

280W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux8079m
Peak Intensity461785cd(6°)
CTO1800K-10000K
Built-in colors

24 preset colors

Con Personality

DMX512,RDM

Operating voltageAC100~240V
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)347*258*381mm
weight12kg


Download materials

Product brochure
  • P5 leaflet
    2025-10-10
    Down
Product lamp library
  • P5 MA2
    2025-10-10
    Down
  • P5 AVOLTES
    2025-10-10
    Down
CAD
  • P5-28014
    2025-10-22
    Down
User manual
  • P5-28014 specification
    2025-10-22
    Down
