Live-action film

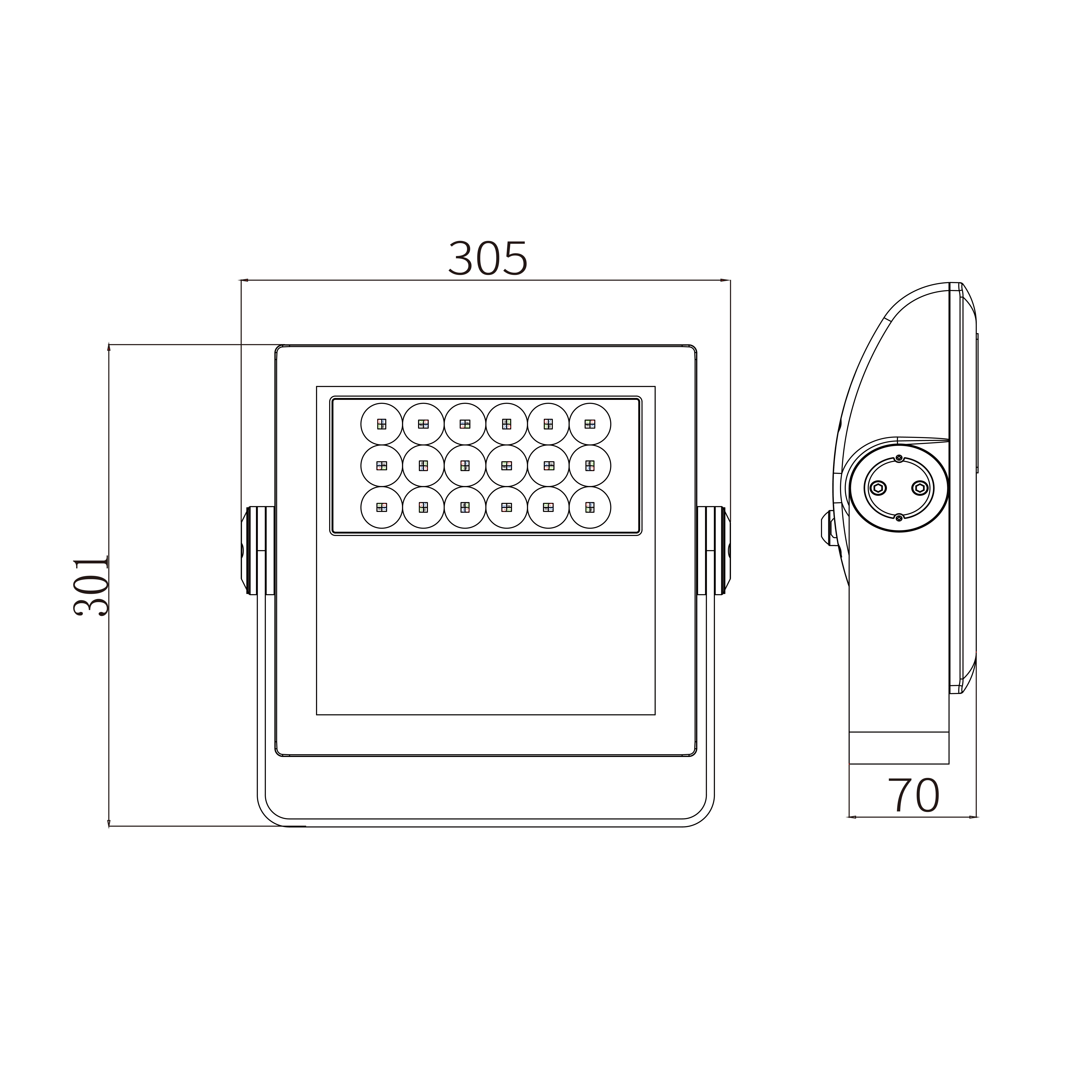

Dimension drawing

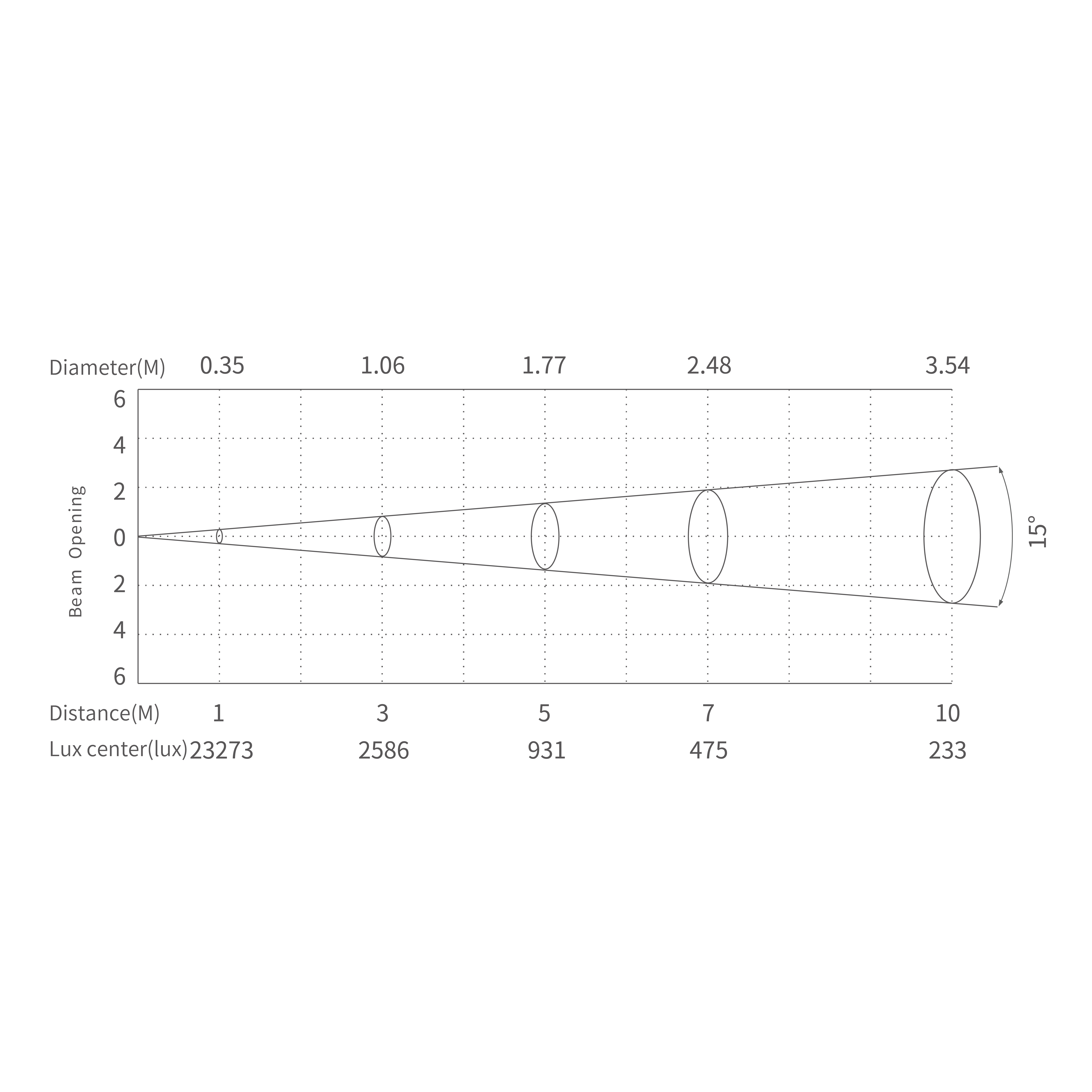

Illuminance diagram
Squre floodlights

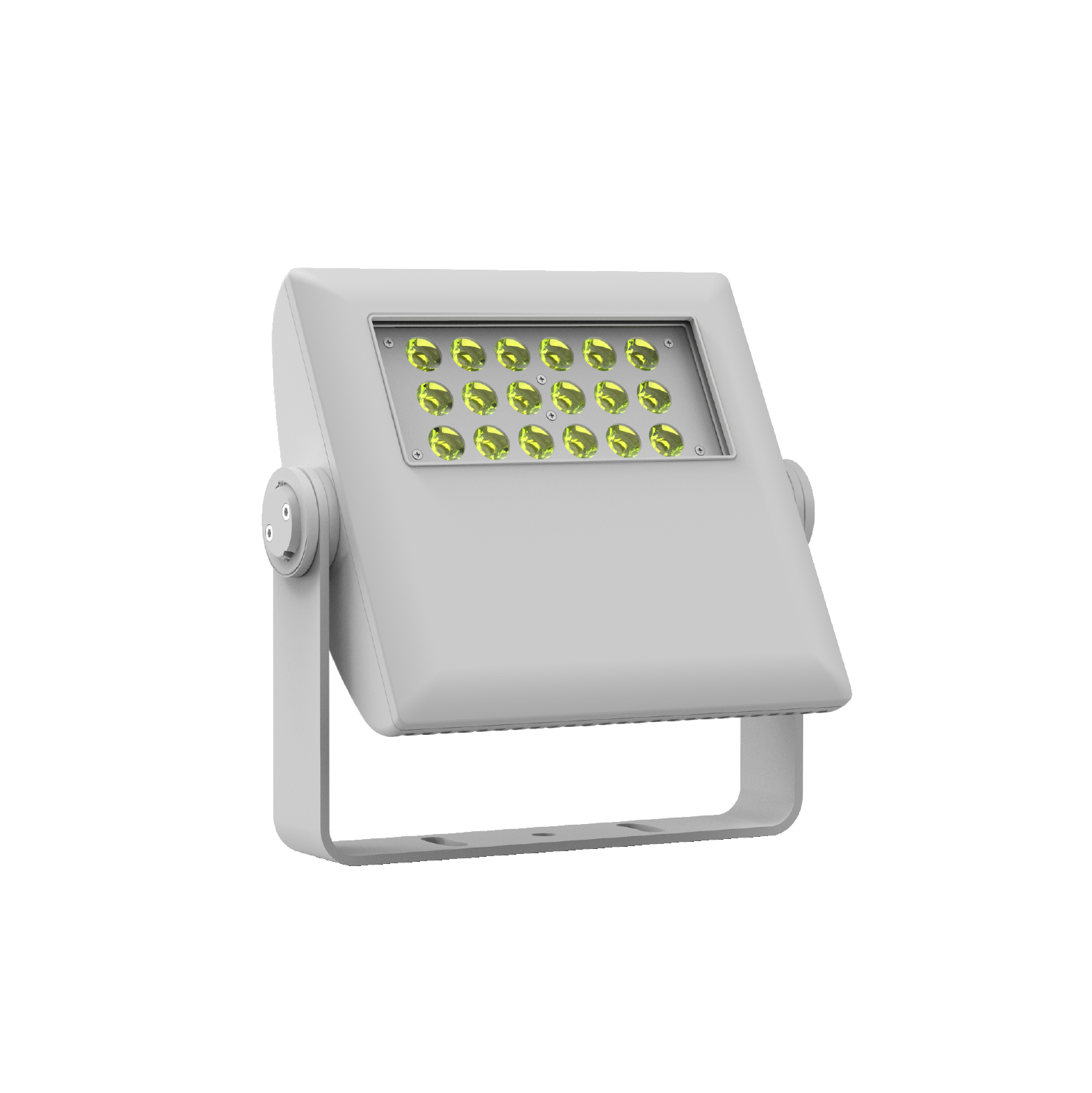

KOLORMAX KF1. use of ightweight aviation alyminum, enerey saving design, the weight ofthe whole fixture only 5.9ke, green ighting energlconsumption ratio of 957lm/kg, high-eficiency power 4-in-1 RGBL LED chip, with a new heat dissipation distribution structure, to ensure thatLED in high-intensity operation stable and reliable, durable. Unique high-end optical design, easily get an accurate mixed single color ormulti-color, and the light efficiency up to 63lm/w, leading the new concept of lighting energy saving. it has a variety of lens angles options.suitable for landscape, commercial building, pedestrian street and other scenes. KOLORMAX KF1, low power consumption and high energyefficiency, the ideal choice for architectural floodlight.
/upload/images/product/20251009/17599892504638399.png
Light source
4 in 1 RGBL(RGBW optional)
/upload/images/product/20251009/17599892509884770.png
Luminous Flux
6517lm
/upload/images/product/20251009/17599892507895729.png
Angle
10° 15° 30° 45° 60° 15°*30° 15°*60°
/upload/images/product/20251009/17599892508728866.png
CRI
Ra:85
/upload/images/product/20251009/17599892507840444.png
weight
5.9kg
/upload/images/product/20251009/17599892503936340.png
Power
100W
TECHNICAL PARAMETER
Product code

AM725KXLET

Max.Power

100W

Light source

4 in 1 RGBL(RGBW optional)

Luminous Flux

6517lm

Peak Intensity23321cd(15°)
CRI
Ra:85
CTO
1800K-10000K
Built-in colors24 preset colors
Con PersonalityDMX512 RDM
Operating voltageAC220V-50/60Hz
Working Temperature-20°C~45°C
Protection LevelIP67
Dimensions(L*W*H)305*70*301mm
weight5.9kg
