Live-action film

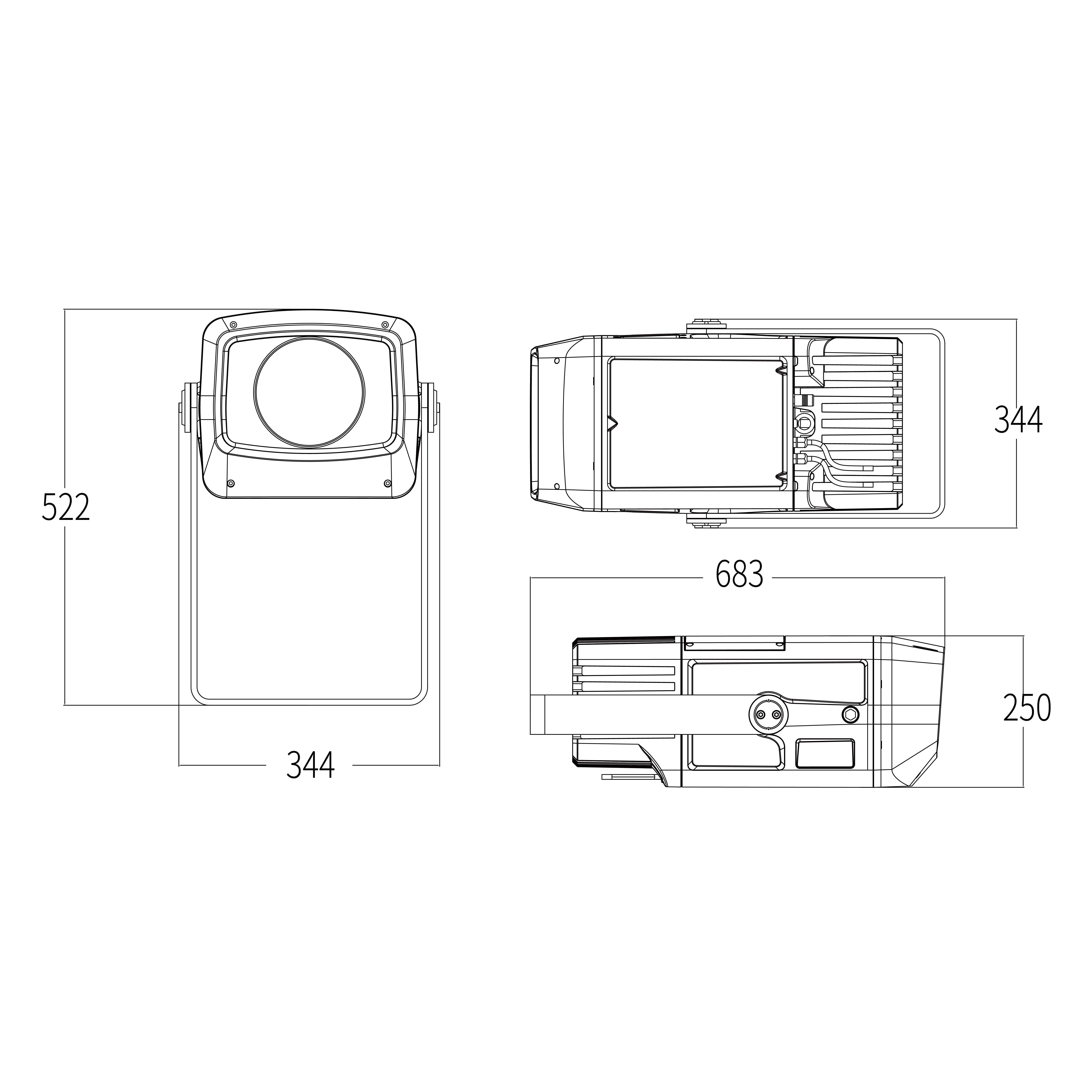

Dimension drawing

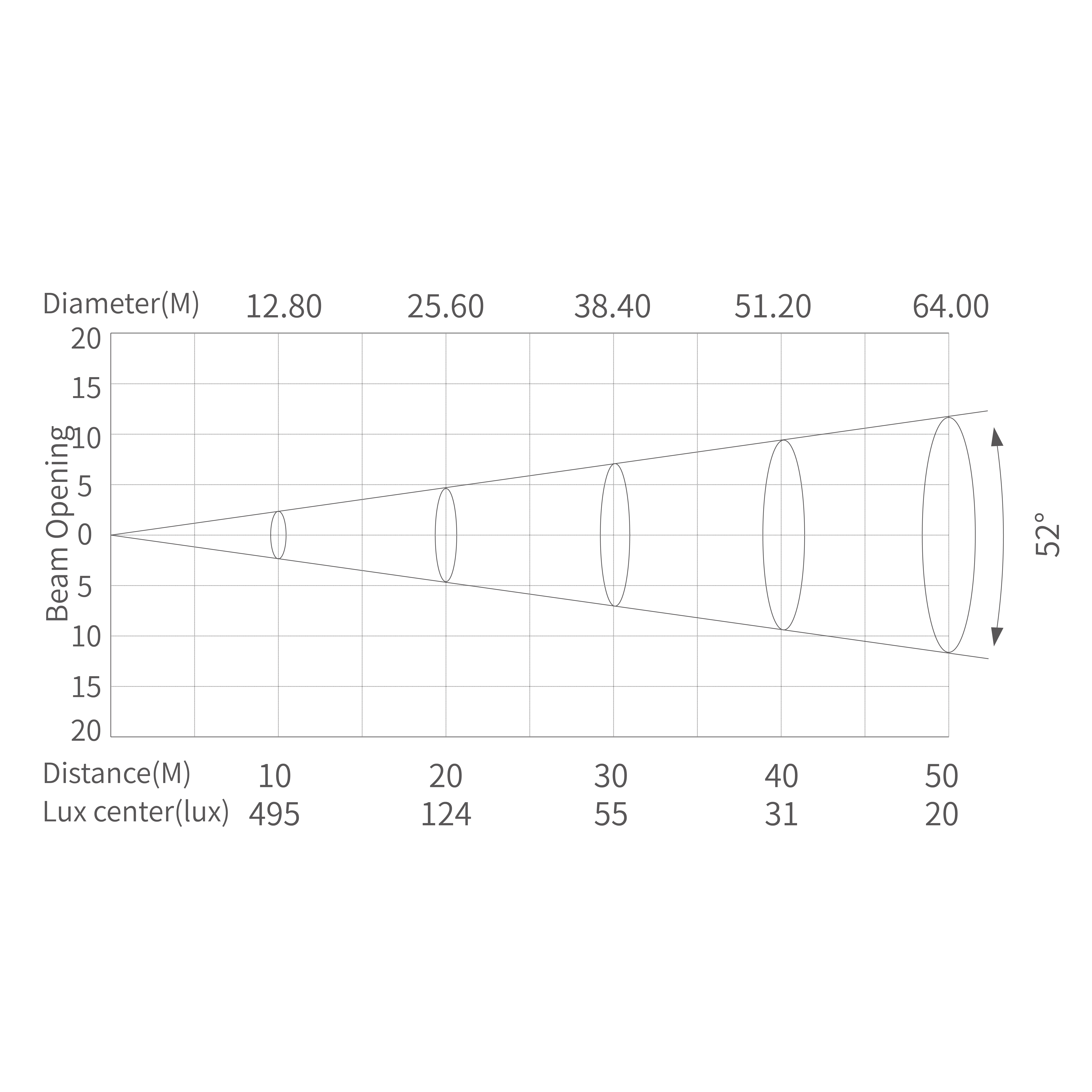

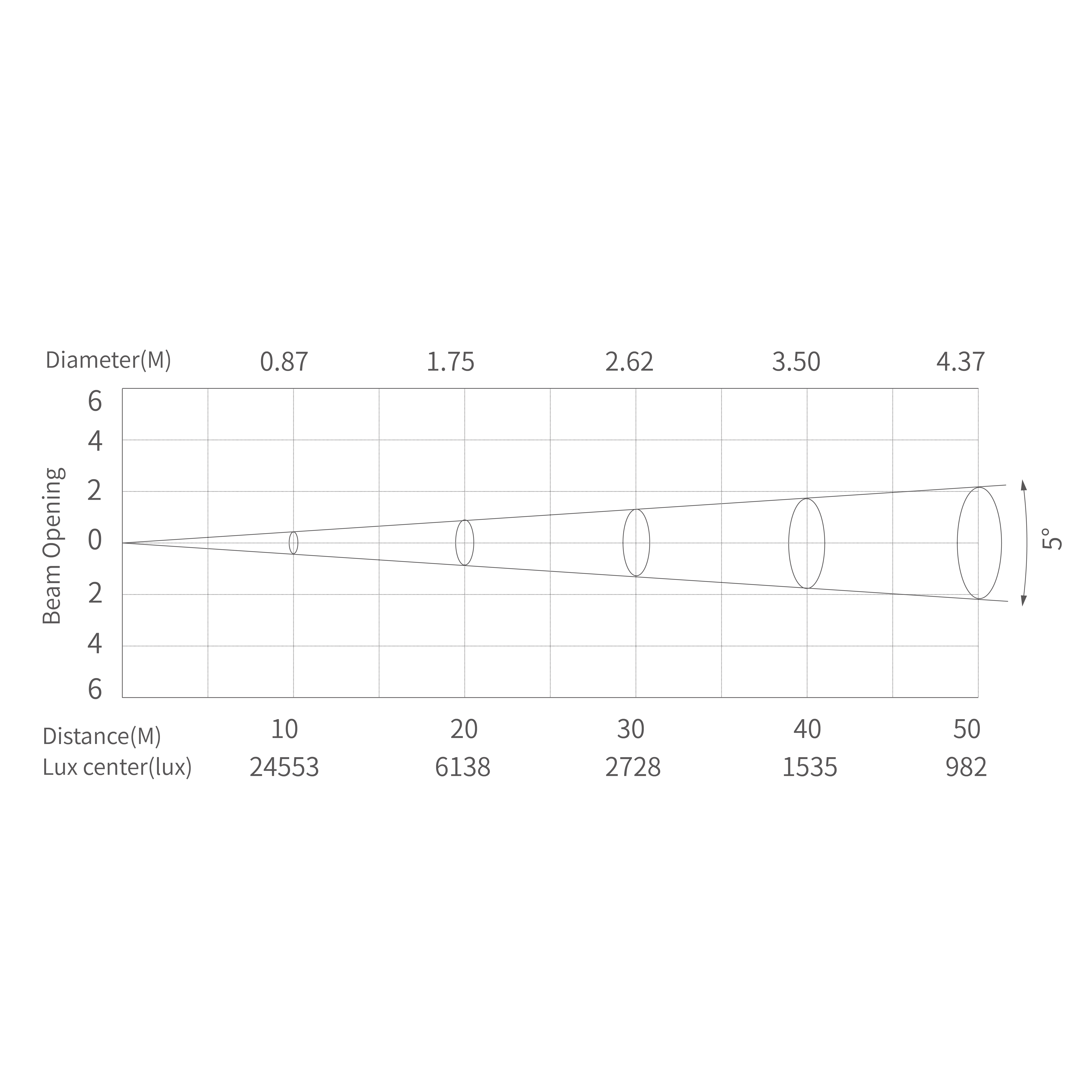

Illuminance diagram
Eidolon Gobo Projection
E8
Eidolon E8 outdoor gobo projector has an IP66 proof and is equipped with an intelligent temperature control system to ensure stable operation in all-weather environments and effectively reduce maintenance costs. The 600-watt LED light source and the 5°-52° electronic zoom function make the large-area, long-distance gobo projection effortless. The framing system makes long-distance light projection arbitrary. With a built-in automatic focusing system, the pattern is clearly visible at any distance. The CMY color-mixing system and the independent linear CTO color temperature adjustment function ensure the uniformity and smooth transition of colors. In addition, it also comes with 14 rotating gobos, prisms, and an animation wheel, brings you a flexible and rich visual effect. Whether such as theme parks, landscape lighting, or center park projects, etc., it can become a powerful assistant for you to create unique light and art effect.
/upload/images/product/20251010/17600577683378383.png
LIGHT SOURCE
600W (cool white LED module)
/upload/images/product/20251010/17600577737558917.png
ANGLE
5°-52°(electronic zoom)
/upload/images/product/20251010/17600577775319111.png
Weight
27kg
/upload/images/product/20251010/17600577815581129.png
MAX. POWER
750W
TECHNICAL PARAMETER
MAX.POWVER

750W

LIGHT SOURCE

600W (cool white LED module)

ANGLE

5°-52°(electronic zoam)

DISPLAYOn board Contrd, 0-25Hz Stroba
CON PERSONALITYSTANDARD(26CHS), BASIC(20CHS)
ROTATING GOBO

2 rotating gobo wheeks (7+open interchange glass gobos)

Gobo-filow effect, Gobo shake, Bi-directional rotatio

COLORS

One color wheel (6 dichroic-flters+open, Rainbow flow effed )

CCT

Linear CTO

PRISMOne d prism with bi-directional rotation, Spaed adjustable
CMYCMY,independentlyvariable 0-100%
FOCUSMotorizsd linear focus
ANIMATON WHEELBi-directional rotation, Speed adjustable
FROST1 motorized frost flter
SHUTTER SYSTEM4 manual shutter blades
DIMENSIONS(L*V*H)683x343x522mm


Download materials

Product brochure
  • E8 leaflet
    2025-10-10
    Down
Product lamp library
  • E8 Depence
    2025-10-10
    Down
  • E8 MA2
    2025-10-10
    Down
  • E8 AVOLTES
    2025-10-10
    Down
User manual
  • E8 specification
    2025-10-10
    Down
