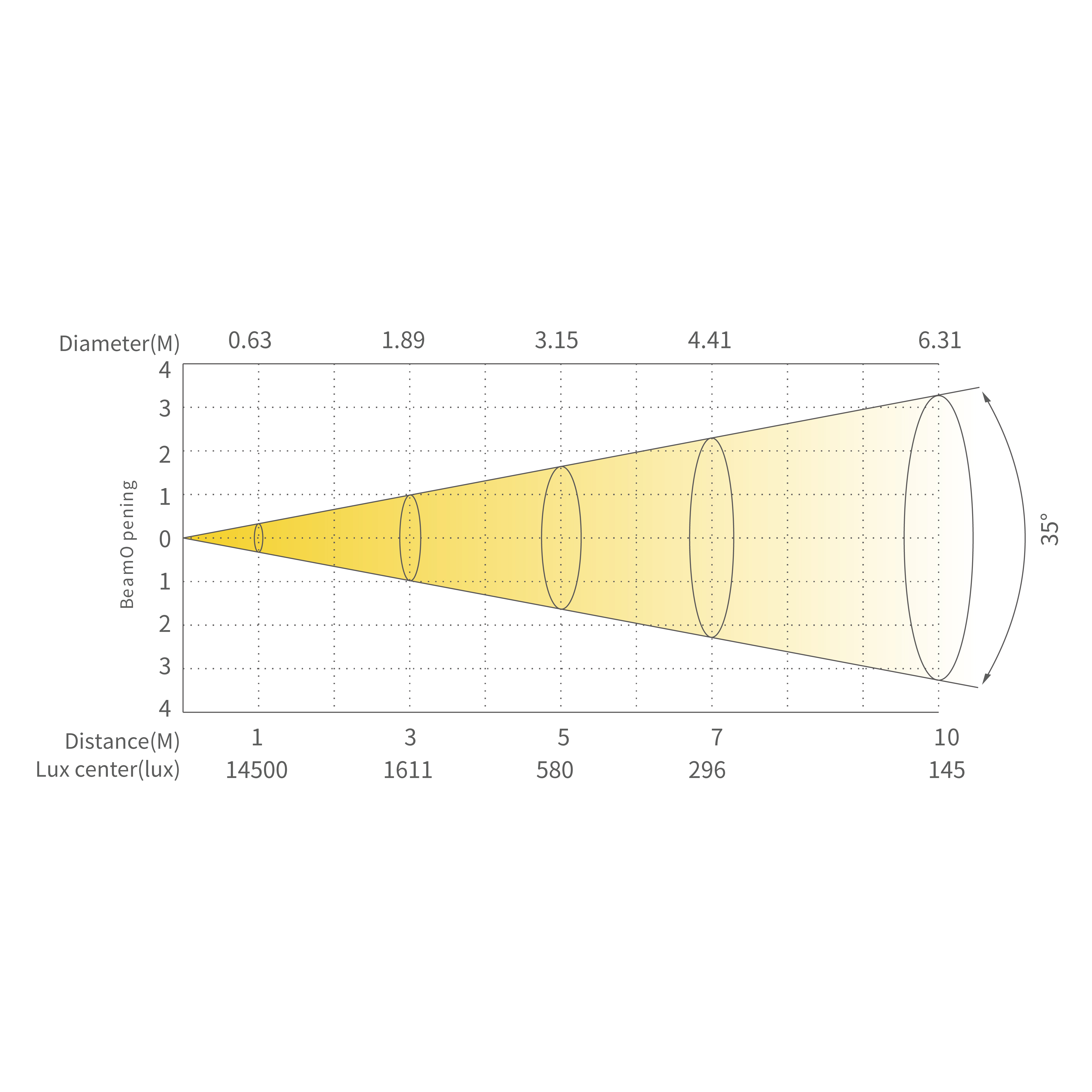

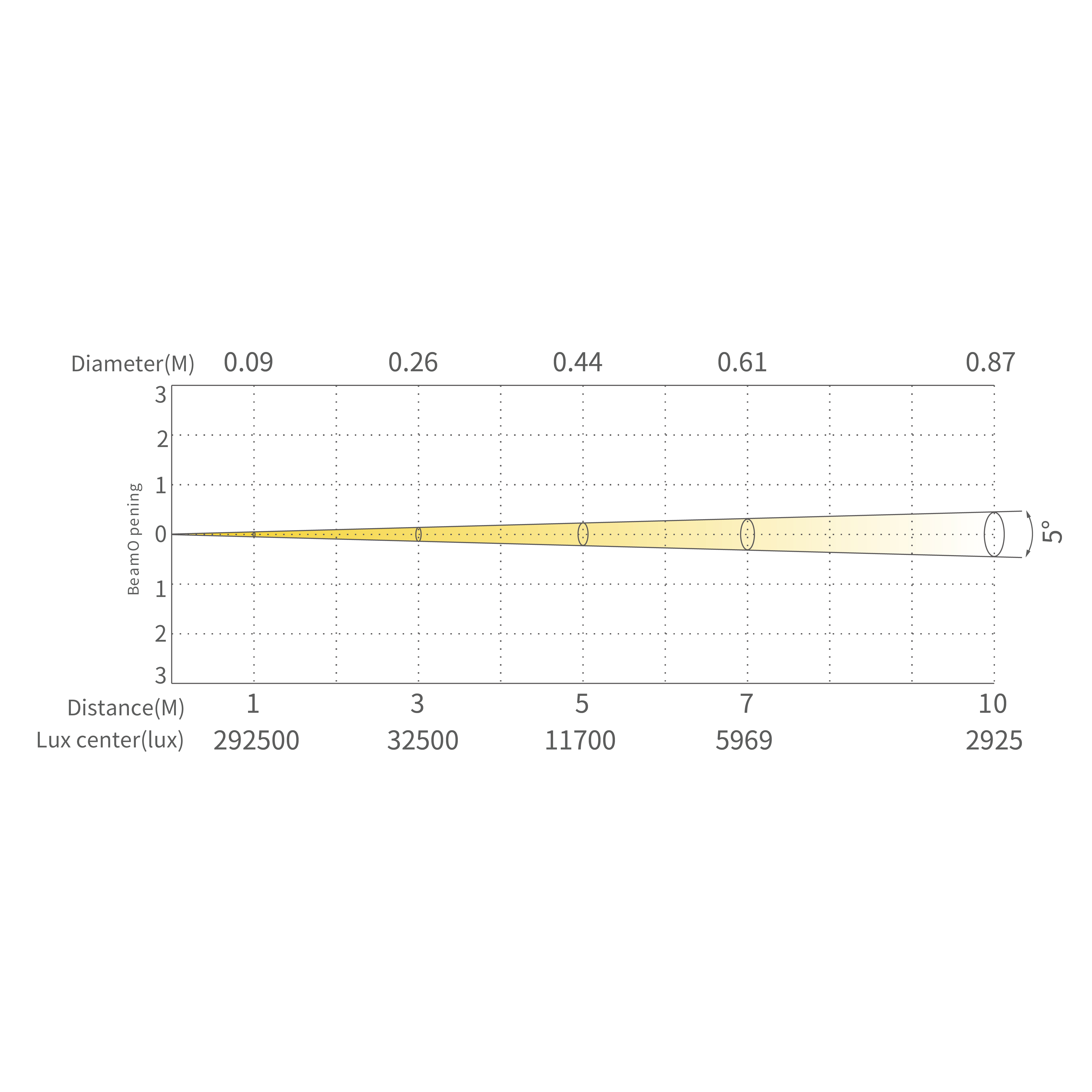

Illuminance diagram
Neptune Moving Wash
NF4
NEPTUNE 400 FX WASH is an innovaive iP washing moving head, combined with 7x40W and 6OW RGBW LED one LED ring effect and great optics design. it is built in HSlC system, mixing color much easier and faster, creating a briliant color effect. Extremely perfect dynamic effect by individ-ual pixel control. Beam angle 5°-35°, Field angle 8°-45°. Small compact with a very light weight 23KG. lt is an ideal products for outdoor concerts/events, commer. cial complex, theme park, amusement park and rental touring market.
/upload/images/product/20251009/17599741859442179.png
Light source
7×40WRGBW,RGBA optional)+ 60WV(RGBV)
/upload/images/product/20251009/17599741861960231.png
Luminous fux
4872lm
/upload/images/product/20251009/17599737305093561.png
Beam angle、Field angle
Beam angle:5°-35° Field angle:8°-45°
/upload/images/product/20251009/17599737386437671.png
Weight
23kg
/upload/images/product/20251009/17599737412244150.png
Max. Power
350W
Optical system
Light source

7x40W(RGBW,RGBA optional)+60W(RGBW)

Luminous flux4872lm
Beam angle5°-35°
Field angle8°-45°


Appearance
Size

416×356×489mm

CasingDie-cast aluminumplastic(V0)
Weight 23kg
ColorBlack


Electrical Specs
Voltage

100-240VAC,50/60Hz

Power Connectionpower in
Signal socket3pin or 5pin in and out, RJ45 in and out
Max. Power350W


Control System
Pan/Tilt rotation

540°1220°

Dimmer0-100%16Bit
CoolingForced Convection
DisplayOn board Control, Custom Mode,0-25Hz Strobe
ControlDMX512、RDM,ARTNET、SACN,Web Server、W-DMx (optional)
Con PersonalitySSP(25CH)、TOUR(30CH)、TR16(33CH)、CMY(31CH)、HSIC(27CH)、PIXEL)(52CH)


Effect synthetic system
Led ring

Can present the rainbow effect

Unique EffecMagic kaleidoscope


Work Environment
Ambient Temp

-20℃-45℃

IP RatedIP66
Certification

CE
